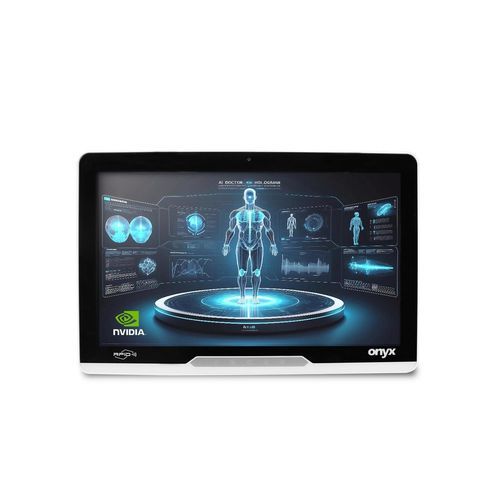

NVIDIA® Jetson AGX Orin™ medical PC ACCEL-JS221

for healthcare facilitiesfor medical imagingall-in-one

Product Overview
ACCEL-JS221 is a 22" FHD medical all-in-one PC based on the NVIDIA Jetson AGX Orin platform, designed for on-device AI inference in clinical and medical imaging applications. Certified for medical use (CE/FCC/UL) and available with 32GB or 64GB LPDDR5 memory.

Key Features

• NVIDIA Jetson AGX Orin platform with 32GB or 64GB LPDDR5
• AI computing performance up to 275 TOPS
• Support for 10G and 1G LAN for high-bandwidth data transfer
• 22" LED Full HD (1920x1080), 250 nits
• Video output: DisplayPort 1.4 or HDMI 2.0
• Slim, compact form factor for clinical environments
• Optional HDMI 2.0 and 12G/3G SDI video input for capture
• Medical certifications: CE, FCC, UL
• PCIe Gen4 [x8] slot (x1) for additional capture or expansion card
• Built-in stereo speakers (2W x 2)

Specifications
System

• Processor: NVIDIA Jetson AGX Orin
• OS Support: Linux®
• System Memory: 32GB or 64GB LPDDR5
• Security: Trusted Platform Module (TPM) 2.0
• Graphics: NVIDIA Ampere GPU — 1792-core with 56 Tensor Cores or 2,048-core with 64 Tensor Cores
• Storage: 64GB eMMC; 1 x M.2 NVMe SSD
• Wireless (optional): 802.11a/b/g/n/ac/ax with Bluetooth 5.2
• Speaker: 2W x 2
• Expansion Interface: PCIe Gen4 [x8] x1 (optional)

Display

• Display Size: 22"
• Touch: Capacitive multi-touch
• Resolution: 1920 x 1080 (FHD)
• Contrast Ratio: 1000:1
• Luminance: 250 nits
• Viewing Angle: 178° (H) / 178° (V)

I/O

• USB: USB 3.0 Type-C; USB 3.0 Type-A
• Video Out: HDMI 2.0 x1; DisplayPort x1
• Serial Port: RS-232 x2
• Audio: Line-out; Mic-in
• Ethernet: 10G LAN x1; Gigabit LAN x1
• Video Input: HDMI 2.0; 12G SDI; 3G SDI (optional)

Mechanical and Environmental

• Power Supply: AC-in
• Operating Temperature: 0°C to 35°C (32°F to 95°F)
• Storage Temperature: -20°C to 60°C (-4°F to 140°F)
• Dimensions (W x D x H): 400 x 166 x 407 mm
• Package Size: 560 x 305 x 628 mm
• Gross Weight: 14 kg
• Net Weight: 12 kg

Model Summary

• Model: ACCEL-JS221
• Platform: NVIDIA Jetson AGX Orin
• AI Performance: up to 275 TOPS
• Memory Options: 32GB LPDDR5; 64GB LPDDR5
• Storage: 64GB eMMC; 1 x M.2 NVMe SSD
• GPU: NVIDIA Ampere architecture (1792-core/56 Tensor Cores; 2,048-core/64 Tensor Cores)
• Display: 22" FHD capacitive multi-touch
• Video I/O: HDMI 2.0, DisplayPort (DP1.4 support); optional HDMI input and 12G/3G SDI
• Network: 10G LAN x1; Gigabit LAN x1; optional Wi‑Fi 802.11a/b/g/n/ac/ax + BT5.2
• Expansion: PCIe Gen4 [x8] x1
• Audio: Built-in speakers 2W x2; line-out; mic-in
• Security: TPM 2.0
• Certifications: CE / FCC / UL
• Operating Temp: 0°C to 35°C
• Weight: Net 12 kg; Gross 14 kg
