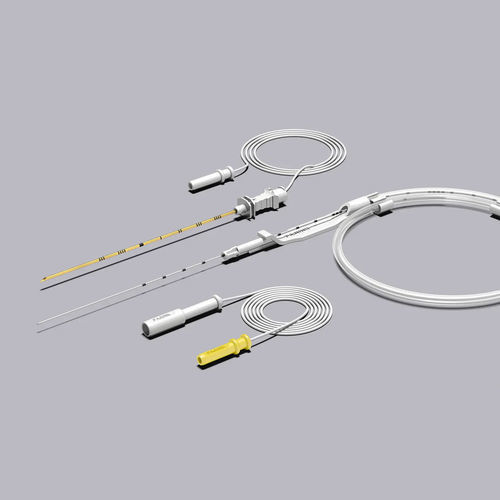

Anesthesia catheter StimuLong Sono II

epiduralatraumatic tipbox of 10 units

Product Details
The StimuLong Sono II is a stimulating catheter-through-needle system designed for regional anesthesia procedures. It combines a silver-plated stimulating catheter tip and echogenic needles to assist placement control, allow intra- and postoperative stimulation checks, and improve ultrasound visibility. Sets are supplied with either Tuohy or Facet Tip needles and are compatible with PAJUNK nerve stimulators.

Catheter Features & Advantages

• Stimulating open catheter tip with silver plating: ensures conductivity for reliable stimulation and position confirmation
• Central lumen for free flow of anesthetic
• Stainless steel helical coil reinforcement: radiopaque, increases ultrasound visibility, improves flexibility and reduces kinking
• Depth markings on the first 30 cm to visualise insertion depth during placement

Needle Features & Advantages

• Echogenic needle tip to improve tip visibility under ultrasound
• Cornerstone reflectors: 360° graduations on the first 20 mm for optimised visibility of shaft and tip at variable angles
• NanoLine® coating: ultra-thin polymer film on inner and outer needle surfaces for improved puncture and gliding properties; non-insulated needle tip enables precise stimulation
• Solid black depth markings to support visualization during needle insertion

Ordering Information
Item description | LUER | Item no. | Purchase Unit
19G x 50 mm (2") with Facet Tip | 20G x 50 cm catheter with central opening | 531187-32A | 10
19G x 100 mm (4") with Facet Tip | 20G x 50 cm catheter with central opening | 521187-32A | 10
18G x 50 mm (2") with Tuohy Tip | 20G x 50 cm catheter with central opening | 531187-32C | 10
18G x 100 mm (4") with Tuohy Tip | 20G x 50 cm catheter with central opening | 521187-32C | 10

Studies / References
Fuzier R. et al. The echogenicity of nerve blockade needles, Anesth. 2015; 70: 462–466
Toledano R. D. et al. Epidural Catheter Design - History, Innovations, and Clinical Implications., Anesthesiology, V 121, No 1, 201

Technical Specifications

• Brand: PAJUNK
• Product type: Stimulating catheter-through-needle system
• Catheter: 20G x 50 cm with central opening (included in sets)
• Catheter tip: silver-plated stimulating open tip for conductivity and stimulation
• Catheter reinforcement: stainless steel helical coil, radiopaque
• Catheter markings: depth markings on first 30 cm
• Needle options: 19G (Facet Tip) and 18G (Tuohy Tip) in 50 mm (2") and 100 mm (4") lengths
• Needle features: echogenic tip, Cornerstone reflectors (360° graduations first 20 mm), NanoLine® coating
• Set contents (typical): needle, 20G x 50 cm catheter, StimuLong clamping adapter (yellow), connecting cable, MiniFilter 0.2 µm, FixoLong Mini
• Compatibility: compatible with PAJUNK nerve stimulators
