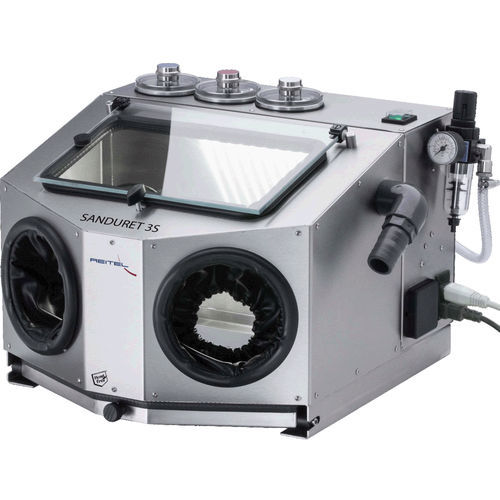

Electric micro-sandblaster SANDURET 3 S

foot-operatedelectrically heated4 tanks

Description
The Microfine jet blasters provide high-quality surface preparation for blasting various materials using commercial abrasives from 25 to 250 µm. The unit is suitable for cleaning, buffing, polishing and removing oxide layers from different substrates. Integrated inlet pressure control and a REITEL quick-stop valve enable precise and economical abrasive use. A water separator and filters reduce maintenance and minimise downtime. The special blasting principle combined with heated chambers ensures a constant abrasive flow and smooth blasted surfaces. Start and stop functions are operated via a foot switch. An additional blow-off nozzle removes abrasive from the workpiece. Refill or change of abrasive media is possible in minutes via the removable lid or the drain screw. A bright LED provides shadow-free lighting in the work area. The durable stainless steel housing ensures a long service life. An optional stainless steel drawer unit allows fast removal of used abrasive material. Depending on requirements, two, three or four chambers can be filled with blasting media from 25 to 250 µm. A list of pre-installed chambers is available under Download.

Technical features

• REITEL quick stop valve
• durable carbide nozzles
• Nozzle for cleaning the object (blow-off)
• Heated chambers ensuring constant abrasive flow and chamber selector for quick change
• Safety glass panel with protective film
• Bright LED for shadow-free working area
• Inlet pressure control with water separator and filter
• Leather gauntlets
• Line voltage: 230 V / 50–60 Hz
• Power consumption: 100 W
• Height/width/depth: 320+160 / 480 / 440 mm
• Weight: 17 kg
• Air consumption: 80 l/min
• Operating pressure: 0.5–6 bar
• Nozzle sizes: 1.2 mm and 1.5 mm
• Particle size: 25–250 µm
• Housing: stainless steel
• Order-No.: 14601001

Characteristics / specifications

• Model / series: SANDURET S (variants: 2S, 3S, 4S)
• Application: microfine sandblasting for cleaning, buffing, polishing and oxide removal
• Abrasive grain size: 25–250 µm
• Chambers: 2, 3 or 4 chambers (pre-installed chamber list available)
• Heated chambers: yes (ensures constant abrasive flow)
• Control: inlet pressure control and integrated REITEL quick-stop valve
• Filters: water separator and filter included
• Lighting: bright LED for shadow-free working area
• Nozzles: carbide, sizes 1.2 mm and 1.5 mm (additional nozzles available)
• Air consumption: 80 l/min
• Operating pressure: 0.5–6 bar
• Electrical: 230 V / 50–60 Hz, 100 W
• Dimensions (H/W/D): 320+160 / 480 / 440 mm
• Weight: 17 kg
• Housing material: stainless steel
• Order number (example variant): 14601001
