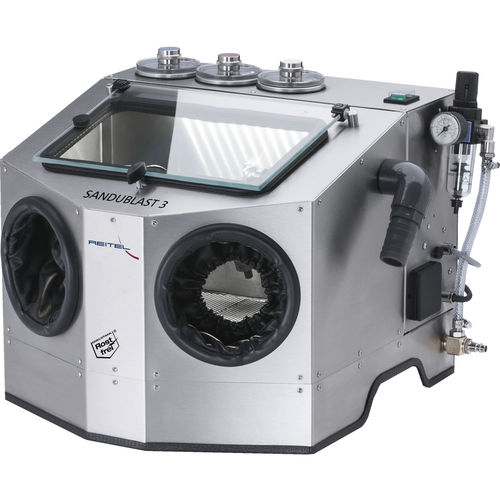

Electrically heated micro-sandblaster SANDUBLAST 3

foot-operatedpneumaticelectric

Description This multipurpose sandblasting unit is designed for surface treatment in dental laboratories. It combines a recycling sandblasting system for model castings with a microfine jet blaster, providing the advantages of both recycling and microblasting technologies in one compact, high-performance unit. The maintenance-free REITEL quick-stop valve integrated in the microfine jet blaster ensures precise and economical use of abrasives. Heated chambers maintain a constant abrasive flow to prevent nozzle blockages. The re-circulation sandblasting nozzle is lockable at any angle for optimum operator comfort. The spacious stainless steel working area features bright, shadow-free LED illumination for ergonomic working conditions. Depending on requirements, two or three chambers can be filled with blasting media from 25 to 250 µm. A list of pre-installed chambers is available in the product downloads.

Technical features

• Recycling sandblasting principle enables repeated use of abrasives
• Bright, shadow-free LED lighting for the work area
• High blasting pressure up to max. 6 bar; foot switch operation
• Maintenance-free REITEL quick-stop valve integrated in the microfine jet blaster
• Heated chambers ensure consistent abrasive flow and prevent nozzle clogging
• Re-circulation nozzle adjustable and lockable at any angle; chamber selector accessible from inside the blasting cabinet
• Air nozzle for targeted blowing
• Safety glass panel with protective film
• Line voltage: 230 V / 50–60 Hz; Power consumption: 100 W

Characteristics / technical specifications

• Model: SANDUBLAST (2 or 3 chambers)
• Blasting media grain sizes: 25–250 µm (chambers configurable)
• Variants: 2 or 3 heated chambers
• Blasting pressure (max): 6 bar
• Air consumption: approx. 80 l/min
• Nozzles: 1.2 mm and 1.5 mm
• Pressure chamber: 0.5–6 bar
• Housing: stainless steel
• Dimensions (H/W/D): 360+190 / 480 / 440 mm
• Weight: 17 kg
• Lighting: LED
• Order-No.: 14605000
