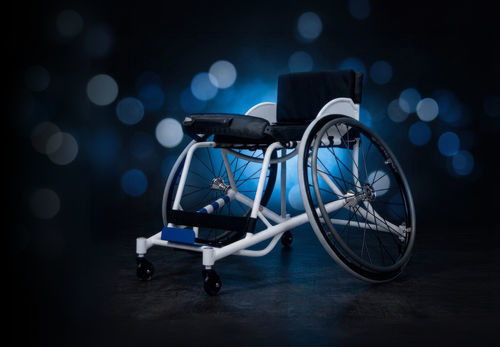

Manual wheelchair BDM25 series

for disabled peoplesportfor badminton

Overview
Vulcan Sport badminton wheelchairs are offered as Made-to-Measure and Club ranges engineered for on-court agility, stability and precise responsiveness. Frame materials include 7020 T6 aluminium, titanium and lightweight magnesium to optimise strength-to-weight ratio. The range addresses needs from club players to elite athletes and is supplied in partnership with the Badminton World Federation (BWF).

Materials & Construction
Made-to-Measure frames use Aircraft Grade 7020 T6 aluminium, titanium or magnesium for a low-weight, high-stiffness solution. Club models use robust steel for cost-efficiency and durability in training environments.

Made to Measure Range

• Frame materials: Aircraft Grade 7020 Aluminium (T6), Titanium or Magnesium.
• Wheels: Spinergy SPOX wheels as standard; available sizes: 24", 25", 26" or 700C Spinergy wheels.
• Fittings: Second fitting session included to refine frame geometry and ensure optimal posture and control.
• Contour Body Mapping (Contour Body Mapping®): Electronic contour scanning captures precise body dimensions (claimed accuracy ±2mm) to create a digitally tailored wheelchair.

Club Badminton Wheelchair (BDM25 Club Line) — Key features

• Seat widths: 380 mm (15"), 410 mm (16"), 430 mm (17").
• Rear wheels (club): Supplied with 25" Roader quick-release sport wheels.
• Frame (club): Durable steel construction; typical example weight ~14 kg.
• Safety: Single anti-tip wheel fitted as standard for added stability.

Adjustability & Comfort

• Footrest: Height adjustable on Made-to-Measure units; fixed with foot strap on selected club configurations.
• Upholstery: Adjustable-tension upholstery to optimise support and seating posture.
• Seat cushion: Foam seat cushion supplied with club models.
• Waist strap: Hook-and-loop waist strap included on club chairs for secure positioning.
• Castors & forks: Single or double anti-tip castors available with stepless adjustment; micro-castor forks used on specific setups.

Key Features & Highlights

• Made-to-Measure units include Spinergy SPOX wheels as standard for improved on-court performance.
• Contour Body Mapping® (CBM) reduces measurement error and enables precise camber and frame configuration.
• Second fitting session included to fine-tune setup after trial use.
• Club range offers welded side guards, quick-release sport wheels, adjustable upholstery and cost-effective steel construction for clubs and training centres.
• Wheel, axle and camber adjustment options available via CBM data and custom fittings.

Proud Supplier & Standards
Vulcan Sport is a recognised supplier to the Badminton World Federation (BWF) and supports development and participation in wheelchair badminton at competition levels.

Prescription & Fitting
The Made-to-Measure process uses a prescription form and Contour Body Mapping® scanning to capture anthropometric data and prescribe a tailored wheelchair. A second fitting session is provided to finalise frame adjustments, confirm posture and verify performance.

Technical specifications

• Example club models: BDM25/ST/380 (380 mm seat width, steel frame, 25" wheels), BDM25/ST/410 (410 mm), BDM25/ST/430 (430 mm).
• Made-to-Measure frame materials: 7020 T6 Aluminium, Titanium, Magnesium.
• Club frame material: Steel (typical weight ~14 kg).
• Wheel options: 24", 25", 26", 700C Spinergy wheels; club rear wheels: 25" Roader.
• Anti-tip: Single anti-tip standard on club chairs; single or double anti-tip castors available with stepless adjustment.
• Upholstery: Adjustable tension upholstery; foam seat cushion on club models.
• Footrest: Height adjustable (Made-to-Measure) or fixed with foot strap on some club configurations.
• Side guards: Welded side guards available on specified models.
• Fitting technology: Contour Body Mapping® system (electronic measurement, claimed ±2mm accuracy) with CBM-based camber adjustment capability.
• Services included: Second fitting session for Made-to-Measure wheelchairs.
