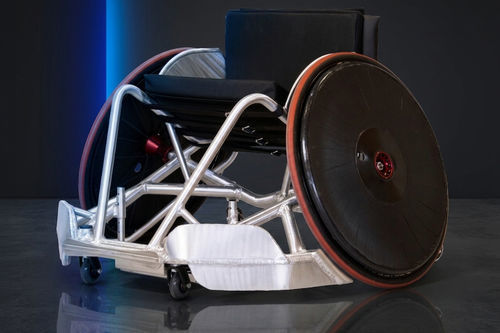

Manual wheelchair

rugbysporttitanium frame

Overview
Vulcan Made to Measure rugby wheelchairs are custom-built for competitive play and rehabilitation-focused programs. Available in strengthened aluminium or lightweight titanium, each chair is configured to athlete measurements and role (attack or defence) to optimise fit, stability and manoeuvrability.

Made to Measure — Frame & Design

• Contour Body Mapping®: precision measurement process to ensure personalised frame geometry and seating position.
• Aircraft-grade 7020 T6 aluminium frame: high strength-to-weight ratio for durability and performance (option for strengthened Aluminium Club chairs).
• Titanium reinforcement and bumper on selected Attack models for increased impact resistance.

Made to Measure — Wheels & Mobility

• Spinergy performance wheels: lightweight, responsive wheels available in 24" (standard) or 25" (option) sizes.
• Full-rim wheel guards with anti-slip coating to improve grip and protection.
• 72mm front castors optimised for speed, stability and smooth rolling.
• Black anodised castor forks for long-term resistance to wear.

Made to Measure — Comfort & Support

• Ergonomic 2" (50mm) cushion supplied to support posture and pressure distribution.
• Hook & loop foot strap and adjustable footrest for secure, custom positioning.
• Double anti-tip castors for increased safety during dynamic manoeuvres.

Made to Measure — Custom Options

• Custom frame colours and finishes available on request to meet club or clinical identity needs.
• Optional personalised wheel guards and backrest logos for athlete identification.

Club Wheelchair Features

• Strengthened aluminium frame offering cost-effective durability for club use.
• 18° fixed wheel camber to enhance lateral stability, agility and handling.
• 30° seat rake on club geometry to optimise player positioning.
• High-carbon steel pick bar / bumper for impact protection.
• 24" Spinergy wheels standard on Club chairs; Made to Measure can be specified with 24" or 25" wheels.
• Kenda tyres supplied (Club chairs fitted with two red Kenda tyres and tubes).
• Adjustable anti-tip castors and full-rim wheel guards with anti-slip coating.
• Adjustable canvas seat sling, 2" (50mm) cushion, hook & loop foot and waist straps for support.

Hotspot / Feature Details

• 72mm Front Castors: designed for responsive handling, quick acceleration and stable turning.
• Adjustable Seat Upholstery: customisable upholstery for tailored comfort and positional support.
• 5/8" Competition Axles: stronger than standard 1/2" axles for improved durability and power transfer.
• Fully Welded Side Guards: integrated into the frame for enhanced rigidity and protection.
• Titanium Reinforced Guard: engineered to resist impacts while minimising added weight.
• Fully Adjustable Footrest: enables precise athlete positioning for stability and comfort.
• Hoop Wing: improves protection and handling in high-intensity play.
• Competition Tyres and Wheelguards: high-performance tyres for grip and responsiveness; durable wheelguards protect against impacts.

Highlights

• Frame material options: strengthened aluminium (Club) or aluminium/titanium (Made to Measure).
• Axles: 5/8" competition axles across the range for superior impact resistance.
• Wheel options: Spinergy wheels standard (24" Club; 24" or 25" for Made to Measure).

Specifications

• Frame materials: 7020 T6 aircraft-grade aluminium; titanium reinforcement on selected models.
• Wheel sizes: 24" standard; 25" optional for Made to Measure.
• Axles: 5/8" competition axles.
• Front castors: 72mm diameter.
• Camber: 18° fixed on club geometry.
• Seat rake: 30° on club geometry.
• Cushion: 2" (50mm) ergonomic cushion included.
• Footrest: fully adjustable.
• Wheel guards: full-rim with anti-slip coating; personalised options available.
• Additional features: double anti-tip castors, black anodised castor forks, hoop wing, fully welded side guards.
