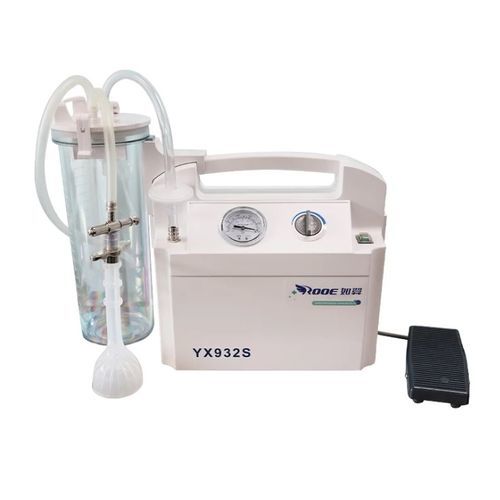

Electric mucus suction pump YX932S-GYN

battery-poweredfoot-operatedportable

Product Overview
The YX932S electric suction device is a compact, portable medical suction device. Featuring an oil-free, maintenance-free suction pump, the maximum negative pressure can be easily controlled via a front panel regulator. The durable and attractively designed body has a storage box on the back and is made of powder-coated metal and plastic.

It is intended for Obstetrics and Gynecology use, a pair of fetal suction cups, specifically designed for use by pregnant women during childbirth.

Features

• Large-flow oil-free lubrication vacuum pump: maintenance-free, high pumping rate, no oil mist pollution.
• Overflow protection to prevent liquid entering the intermediate pipe and pump.
• Air filter to block particles from entering the vacuum pump.
• Negative pressure regulation system allowing stepless pressure adjustment according to clinical needs.
• Transparent polycarbonate (PC) liquid storage bottle: high strength, easy to clean; bottle cap hook for easy removal; available in single or double bottle combinations.
• ABS plastic body: compact size, lightweight, easy to carry.
• Parallel connection of manual switch and foot switch (optional).
• High negative pressure, large-flow hand-push suction device suitable for operating room and ward use.
• Built-in rechargeable battery; can be charged from external AC ~220V, 50Hz.

Technical Specifications

• Model: YX932S-GYN
• Max vacuum: ≥0.09 MPa (680 mmHg)
• Adjustable vacuum range: 0.02 MPa (150 mmHg) ~ Max. Vacuum
• Flow rate: ≥32 L/min
• Noise: ≤60 dB(A)
• Storage bottle: 2000 mL × 1 (standard configuration)
• Fetal suction cups: A pair
• Power: AC 220V, 50Hz
• Input power: 150 VA
• Net weight (N.W.): 4.5 kg
• Gross weight (G.W.): 6.5 kg
• Dimensions (DIM): 430 mm × 200 mm × 400 mm
• Package size: 550 mm × 264 mm × 365 mm
