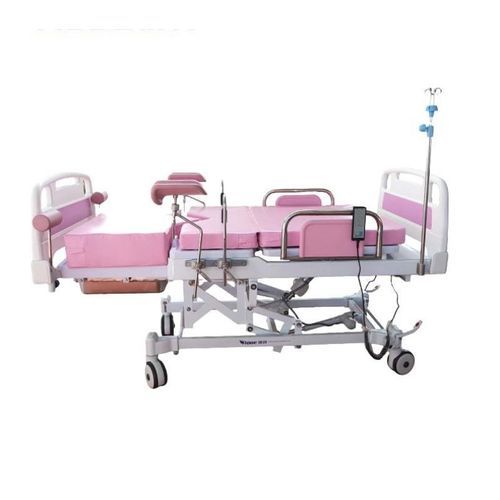

Delivery bed ALDR100B

electricTrendelenburgheight-adjustable

Product Overview
The labor and delivery bed supports the patient through all stages of childbirth, including labor and delivery. Electric controls enable height, tilt and back-section adjustments for accurate patient positioning and efficient clinical workflow. Suitable for delivery rooms and gynecological procedures.

Detailed Description
Our obstetric delivery beds are designed to reduce trauma and provide reliable support and positioning throughout the stages of delivery. A selection of clinical accessories improves comfort and facilitates procedures for both the mother and the care team. The bed is finished with a pre-treated epoxy powder coating appropriate for clinical environments.

Features

• Designed for all stages of labour, delivery and postnatal recovery.
• Foot switch and hand control available as options to suit clinical preference.
• Hi-Lo (height) adjustment, back-section elevation and Trendelenburg/reverse Trendelenburg functions; easily converts to a chair position.
• Equipped with a hidden drainage basin and removable auxiliary table configurable to clinical needs.
• Left and right guardrails provide support during delivery procedures.
• Four casters provide mobility and locking for stable positioning.
• Seamless bed surface design prevents liquid ingress. Colour options: rose, pink, blue.

Technical Parameters

• Model: ALDR100B
• Overall length: 1880 mm
• Overall width: 880 mm
• Tabletop height from floor: Min 690 mm — Max 1024 mm
• Reverse Trendelenburg: ≥12°
• Trendelenburg: ≥12°
• Back section elevation from horizontal: ≥70°
• Side rail rotation: 180°
• Power supply: AC 220V±10%, 50Hz

Included / Basic Accessories (as listed)

• Leg holder: 2 pcs
• Clamp: 2 pcs
• Grab handle: as provided
• Foot rest: 2 pcs
• Basin: 1 pc
• Waterproof cushion: 1 set
• I.V. stand: 1 pc
• Cushion for newborn baby: 1 set
• Additional cushion set: 1 set

Specifications

• Model: ALDR100B
• Length: 1880 mm
• Width: 880 mm
• Tabletop height range: 690–1024 mm
• Reverse Trendelenburg: ≥12°; Trendelenburg: ≥12°
• Back section: ≥70° elevation
• Side rail rotation: 180°
• Power supply: AC 220V±10%, 50Hz
• Accessories: leg holders, clamps, grab handle, foot rests, basin, waterproof cushion, I.V. stand, newborn cushion, cushion set
• Surface finish: pre-treated epoxy powder coated
• Design: electric controls for height, tilt and back adjustments; seamless bed surface; four casters for mobility and locking
