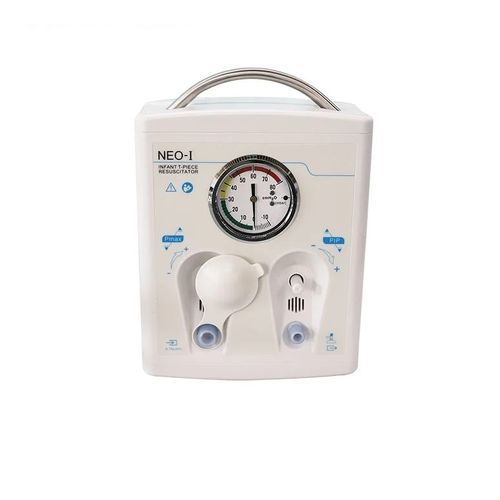

Infant manual resuscitator HBNEO-I

babyemergency carereusable

Designed according to ILCOR and AHA s lastest resuscitation guidelines;
Provide effective and safe airway management during resuscitation;
Offer a safe, stable and controllable target Peak Inspiratory Pressures (PIP) and delivering consistent Positive end-expiratory Pressure (PEEP) to help establish Functional Residual Capacity (FRC) and improve lung volume;
Manually operated, pneumatically driven for the infant <10kg weight, especially for premature;
Applicable for delivery room, transport NICU and other sections.


Features:
Oxygen concentration: 21-100% (according to the oxygen concentration of air supply )
Manometer range: -10-80cmH20 (mbar), Precision: ±2% full scale
Input gas flow range: 5-15L/min
Maximum pressure (Pmax) setting range: gas flow is 8L/min, 3-60cmH20(mbar) (factory default is 40cmH20(mbar))


Peak inspiratory pressure (PIP) setting range:
5L/min: 1-55cmH20(mbar)
8L/min: 2-57cmH20(mbar)
10L/min: 3-58cmH20(mbar)
15L/min: 5-60cmH20(mbar)


Positive end expiratory pressure (PEEP) setting range:
5L/min: 1-8cmH2O(mbar)
8L/min: 1-17cmH20(mbar)
10L/min: 1.5-23cmH20(mbar)
15L/min: 3-26cmH20(mbar)


Applicable time (400L, 50% air/oxygen mixture compressed gas):
5L/min: 75min
10L/min: 38min
15L/min: 26min
Total mass (including accessories): 2kg


Parameter
Size:19*27*9cm
N.W.:1.8kg
Packing Size:34.5*30*38cm
N.W./G.W.:3/4kg
