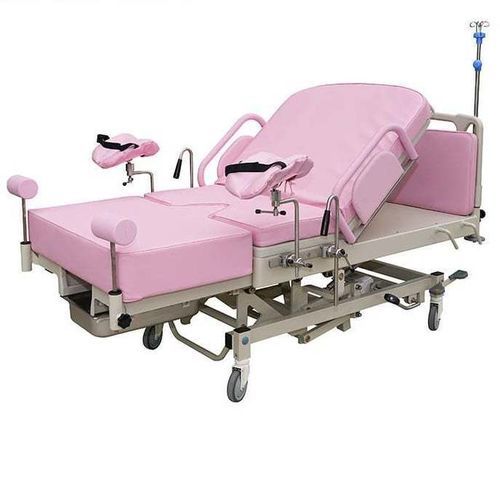

Delivery bed ALDR100B

hydraulicheight-adjustableTrendelenburg

Introduction
This hydraulic obstetric delivery bed is engineered for full LDR (Labor, Delivery, Recovery) workflows, supporting labor, delivery, immediate newborn handling and postpartum recovery without patient transfer. The platform converts from flat to an upright birthing posture and integrates accessories to maintain clinical continuity and staff ergonomics. The mattress uses medical-grade waterproof PU and is suitable for frequent disinfection.

Features

• Designed for full LDR procedures to enable uninterrupted maternity workflow from labor through recovery.
• Hydraulic dual-side foot-pedal height control for power-free vertical adjustment.
• Gas-spring assisted backrest and Trendelenburg positioning for accurate, effortless posture changes.
• Rotatable side rails to combine patient safety with unobstructed clinical access.
• Adjustable accessories: leg holders/stirrups, footrest, grab handles and IV pole to support multiple birthing positions.
• Two functional structural designs: Model A with sliding leg section, newborn mattress pad, movable stainless-steel basin and flushing sink; Model B with fully retractable leg section stored under the pelvic segment and a hidden slide-out tray for fluid collection.
• Central locking system for platform stability; Model B rated for safe working load up to 250 kg.
• Medical-grade waterproof mattress: high-density sponge core with PU surface for comfort, water resistance and easy cleaning.

Models & Key Differences

• Model A: Sliding leg board, newborn mattress pad, movable stainless-steel basin and flushing sink for direct delivery procedures and immediate fluid disposal.
• Model B: Retractable hidden leg board storable under the pelvic section and hidden slide-out tray for amniotic fluid and placenta collection, optimising space and clinical access; supports safe working load up to 250 kg.

Specifications (table)
Specification: Details
Bed Size: 2110 × 980 mm (Model A) / 2070 × 1050 mm (Model B)
Height Adjustment Range: 630–930 mm (without mattress) / 710–1010 mm (with mattress) — Model A
Backrest Adjustment: 0–75°
Trendelenburg: 6° (Model A) / 12° (Model B)
Reverse Trendelenburg: 5°
Leg Section Structure: Sliding leg board (Model A) / Retractable hidden leg board (Model B)
Safe Working Load: Model B: 250 kg

Technical specifications

• Model: ALDR100B
• Application: Full LDR procedures — labor, delivery, newborn handling and postpartum recovery
• Height adjustment: Hydraulic foot-pedal controlled (dual-side)
• Backrest angle: 0–75°
• Trendelenburg angles: 6° (Model A) / 12° (Model B)
• Reverse Trendelenburg: 5°
• Leg section: Sliding (Model A) or Retractable hidden (Model B)
• Safe working load: Up to 250 kg (Model B)
• Positioning assistance: Gas-spring assisted for backrest and Trendelenburg
• Side rails: Rotatable guardrails for safety and access
• Accessories: Adjustable leg holders/stirrups, footrest, grab handles, IV pole; Model A includes movable basin and flushing sink; Model B includes hidden slide-out tray for fluid collection
• Mattress: High-density sponge with PU waterproof surface, easy to clean and disinfect
• Construction: Central locking system for stability
