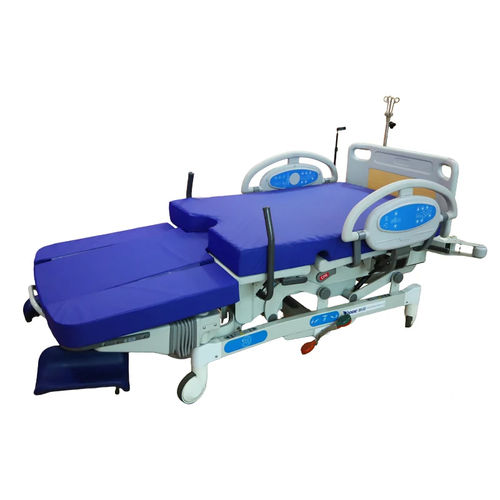

Delivery bed ALDR100D

electricTrendelenburgheight-adjustable

Product Overview
The Electric Labour Delivery Recovery Bed (LDR bed) is a medical bed designed to support the full maternity process: labour, delivery and postpartum recovery. The unit integrates multiple clinical functions to minimise patient transfers and streamline care. Electric controls, ergonomic structure and multiple positioning options provide comfort for the mother and efficiency for clinical staff, suitable for hospitals and maternity centres.

Key Features

• Multifunctional integrated design: combines labour, delivery, recovery, examination and gynecological surgery functions in a single bed to reduce transfers and improve workflow.
• Multiple position support: supports sitting, prone, semi-squatting, supine, kneeling and free positioning to meet diverse clinical requirements.
• Quick conversion system: fast transition from labour mode to delivery mode without manual assembly.
• Full electric control system: one-touch side rail release with dual-side touch control panels; illuminated controls with adjustable brightness for day/night use.
• Antibacterial, easy-clean mattress: nano silver ion double-layer PU with contoured memory foam and ultrasonic welding for hygiene and simplified cleaning.
• Built-in music playback: USB support for patient-preferred music to help create a relaxed birthing environment.
• Emergency CPR function: fast CPR quick-release for immediate response during emergencies.
• Adjustable assist handle: hidden, movable handle with front and back adjustment to assist mothers during exertion.
• Motorized retractable leg support: electric height adjustment with retractable design for caregiver convenience.
• Backup power supply: built-in uninterrupted power supply with battery level display to maintain operation during outages.
• Intelligent night lighting: motion-sensing night light to provide safe automatic illumination around the bed.
• Stable mobility system: dual-locking casters and foot-operated brake with three modes (free, directional, brake) for controlled movement and positioning.
• Ultra-low bed height design: low minimum height for easier access and improved patient safety.
• Optional mattress cut: available with V-shaped or straight-edge hip cut to suit hospital preferences.

Specifications
Model: ALDR100D
Length: 1950mm
Width: 940mm
Bed base maximum height: 890mm
Bed base minimum height: 540mm
Backrest max upward angle: ≥65°
Seat max upward angle: ≥12°
Footrest swing out (manual): ≥50°
Footrest folding (manual): ≥75° (manual)
Trendelenburg (manual): ≥8°
Castor diameter: 125mm (standard)
