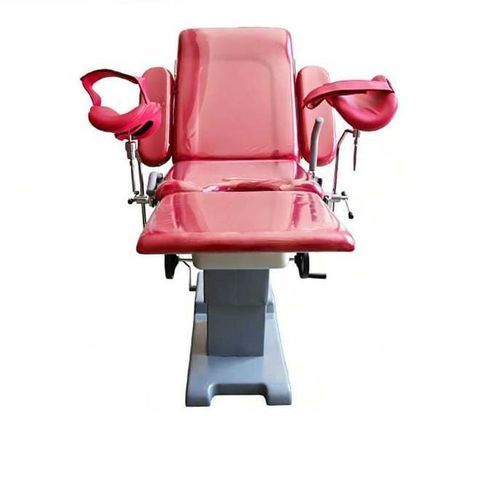

Gynecological operating table A-2003 Plus

hydraulictiltingmobile

Product Overview
The A-2003 Plus Gynecological Operating Table is designed for obstetric delivery, gynecological surgery, examinations and emergency procedures. With a human-centered design it improves patient positioning and clinical workflow. The table features a hydraulic lifting system, multi-angle adjustments, 304 stainless steel construction and a waterproof, anti-contamination mattress for hygiene and easy cleaning.

Key Features

• Multifunctional integrated design: For delivery, gynecological surgery, examinations and emergency C-sections. Removable auxiliary table converts the unit into an examination table.
• User-friendly adjustment system: Hydraulic height adjustment; handwheel-controlled Trendelenburg and reverse Trendelenburg; gas spring-assisted backrest for smooth operation.
• Multi-angle positioning: Supports forward tilt, backward tilt and wide-range backrest adjustment to accommodate delivery positions and specific examination needs.
• Durable materials: Frame, tabletop and waste basin in premium 304 stainless steel for corrosion resistance and simplified cleaning.
• Waterproof, contamination-resistant mattress: Seamless leather mattress prevents fluid ingress and resists stains, acids, alkalis and UV exposure.
• Mobility with secure locking: Concealed casters for omnidirectional movement and rotation; foot-operated brake for quick positioning and stable locking.
• Emergency positioning support: Enables head-down and leg-up positions for rapid emergency response.
• Stable structural design: Robust frame ensures stability; maximum vertical travel up to 250 mm with smooth, low-vibration performance.
• Comfort and safety supports: Armrests adjustable up to 180° and foldable for patient transfer; secure leg supports with high load capacity.
• Modular and expandable: Optional detachable foot pedal and accessories for flexible configuration.
• Easy maintenance: ABS base with smooth surfaces; overall resistance to corrosive hospital gases.
• International certifications: ISO9001, ISO13485 and FDA approvals.

Additional Notes
Brake pedal switch: provides braking control for the table.

Caractéristiques / spécifications techniques

• Model: A-2003plus
• Table dimensions: ≥1850 × 600 mm
• Load capacity: 135 kg
• Auxiliary table size: 550 × 500 mm
• Minimum height: ≥660 mm
• Lifting stroke: ≥250 mm
• Forward tilt angle: ≥10°
• Backward tilt angle: ≥15°
• Backrest upward angle: ≥70°
• Backrest downward angle: ≥18°
• Maximum vertical travel: 250 mm
• Armrest adjustment range: 180°
• Armrest load capacity: 50 kg
• Leg support torque: >15 kg
• Bedpan size: 360 × 320 × 160 mm
