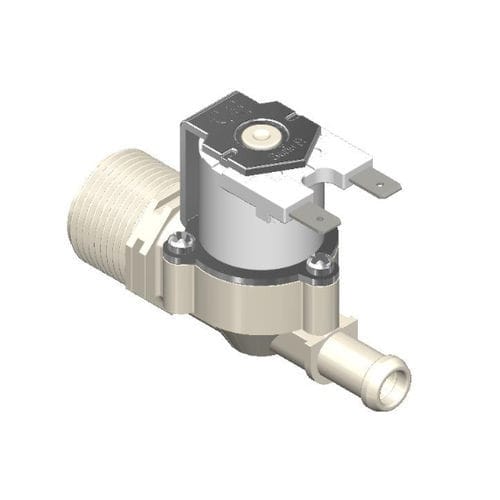

Solenoid solenoid valve R153 GHT pneumaticregulatingfor water
Add to favorites
Compare this product
fo_shop_gate_exact_title
Characteristics
- Type
- solenoid
- Operation
- pneumatic
- Function
- regulating
- Medium
- for water
- Fluid specification
- for high temperatures
- Applications
- food
- Other characteristics
- bistable, normally closed, drive
- DN
10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.2 bar
(2.9 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Volumetric flow rate
16.96 l/min
(4.4804 us gal/min)
Description
R Series Single: dn 10mm, servo-assisted, NC (normally closed), 1 output. Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.
Installation
In any position - Optional: Plastic or Metal mounting bracket
Applications
All automatic water control applications.
Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc.
Electrical Connections
Faston 6,3 x 0,8 mm
Unipolar wires max 5000
Bipolar wires max 5000
