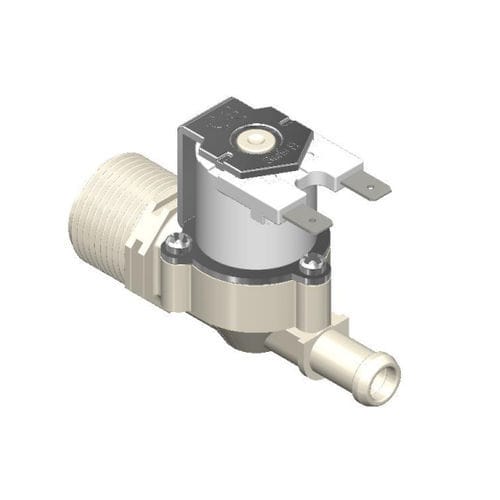

Solenoid solenoid valve R153with servo-motorNCshut-off
Add to favorites
Compare this product
Characteristics
- Type
- solenoid
- Operation
- with servo-motor, NC
- Function
- shut-off
- Medium
- for potable water
- Applications
- for dispensers, for medical applications, washer
- Body
- threaded, male, fiberglass
- Material$
- stainless steel
- Other characteristics
- unidirectional
- DN
10 mm
(0.394 in)- Pressure
Max.: 10 bar
(145 psi)Min.: 0.2 bar
(2.9 psi)- Temperature
Max.: 60 °C
(140 °F)Min.: 0 °C
(32 °F)- Volumetric flow rate
16.96 l/min
(4.4804 us gal/min)
Description
Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.
Installation
In any position - Optional: Plastic or Metal mounting bracket
Applications
All automatic water control applications.
Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc.
