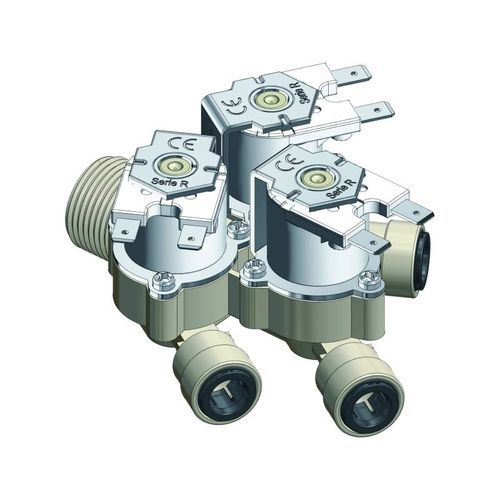

Medical valve R 360

solenoiddirect-operatedsilicone

In any position. Optional: Plastic or Metal mounting bracket Applications All automatic water control applications. Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc. Electrical Connections Faston 6,3 x 0,8 mm Physical characteristic Valve bodyPA 66 - 30% GF Diaphragm:NBR, LSR CoreStainless steel CoilsF Class (155°) AssemblySelf-tapping screws Working specifications Working pressure0,2 - 10 bar Room temperature:Tu 60 °C Fluid temperature:Tm 25 °C - Tm 60 °C - ED 100% Tm 90 °C (3 min ON - 5 min OFF) OrificeDN 8mm; DN 10mm ControlNormally Closed (NC); Normally Open (NO); Latching (LC) Fluid directionUnidirectional KV 90°16,31 L/min KV 180°15,19 L/min Electrical Connections Faston 6,3 x 0,8 mm Hydraulic connections INMale thread G 3/4” OUTHose tail 10 mm; Hose tail 13 mm; Spigot 10 mm; Quick coupling 8 mm; Quick coupling 10 mm MOQ Triple 90°40 pcs Triple 180°40 pcs
