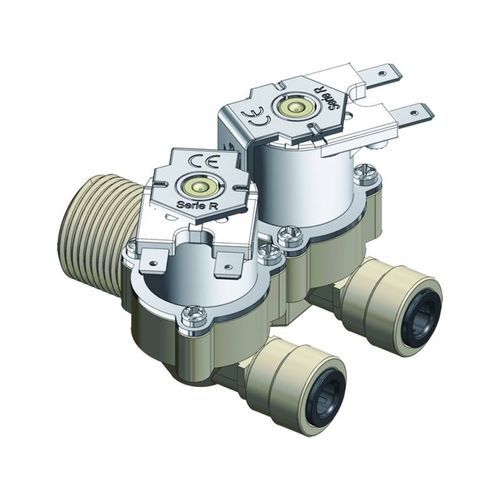

Double R series: dn 10mm, servo-assisted, NC (normally closed), 2 outputs Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading.
Installation
In any position - Optional: Plastic or Metal mounting bracket
Applications
All automatic water control applications.
Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc.
Electrical Connections
Faston 6,3 x 0,8 mm
Working specifications
Working pressure:0,2 - 10 bar
Room temperatureTu 60 °C
Fluid temperature:Tm 25 °C - Tm 60 °C - ED 100%
Tm 90 °C (3 min ON - 5 min OFF)
Orifice:DN 8 mm;
DN 10 mm
Control:Normally Closed (NC);
Normally Open (NO);
Latching (LC)
Fluid directionUnidirectional
KV 90°13,00 L/min
Electrical Connections
Faston 6,3 x 0,8 mm
Hydraulic connections
INMale thread 3/4”;
Male thread 3/4” GHT
OUTHose tail 10 mm;
Hose tail 13 mm;
Spigot 10 mm;
Male thread 1/4”;
Quick coupling 8mm;
Quick coupling 10mm.
KV 180°12,26 L/mm
