Solenoid solenoid valve R 181
with servo-motornormally openNC

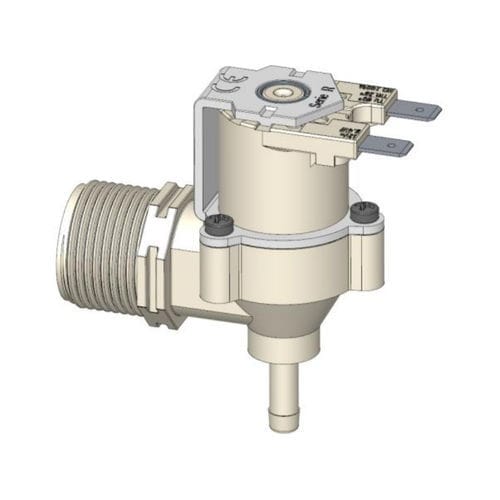

Solenoid solenoid valve - R 181 - Rpe - with servo-motor / normally open / NC
Solenoid solenoid valve - R 181 - Rpe - with servo-motor / normally open / NC
Solenoid solenoid valve - R 181 - Rpe - with servo-motor / normally open / NC - image - 2
Solenoid solenoid valve - R 181 - Rpe - with servo-motor / normally open / NC - image - 3
Add to favorites
Compare this product
Go to the Rpe website for more information

Characteristics

Type
solenoid
Operation
with servo-motor, bistable, normally open, NC
Function
shut-off, for control
Medium
for water, for potable water
Applications
for dispensers, for water treatment, for vending machine applications, for food
Body
threaded, male, screw-in
Material$
stainless steel
Number of channels
one-way
Other characteristics
unidirectional
DN

10 mm
(0.394 in)

Pressure

Max.: 10 bar
(145 psi)

Min.: 0.2 bar
(2.9 psi)

Temperature

Max.: 60 °C
(140 °F)

Min.: 0 °C
(32 °F)

Volumetric flow rate

21.55 l/min
(5.6929 us gal/min)

Description

Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading. Installation In any position - Optional: Plastic or Metal mounting bracket Applications All automatic water control applications. Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc.

Catalogs

R 181
R 181
2 Pages
