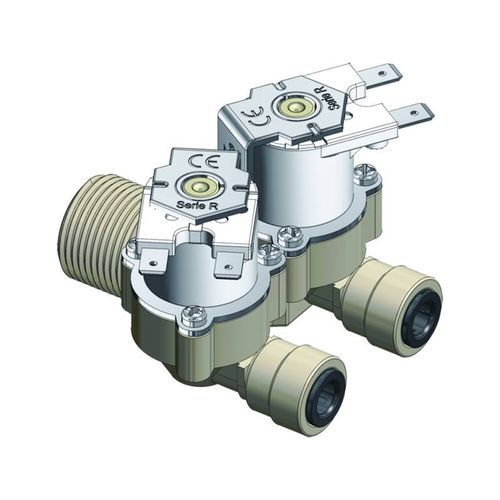

Medical valve R 260

solenoiddirect-operatedsilicone

Double R series: dn 10mm, servo-assisted, NC (normally closed), 2 outputs Suitable for use with drinking water. Also available with direct drive and in the NO (normally open) and bistable version. It can be used as an inlet solenoid valve, for water loading. Installation In any position - Optional: Plastic or Metal mounting bracket Applications All automatic water control applications. Water Inlet Valve: Coffee & Tea, Food Equipment, Ice machines, Household Appliances, Hot Tubs, Water dispensers, Marine Applications, Etc. Electrical Connections Faston 6,3 x 0,8 mm Physical characteristic Valve BodyPA 66 -30% GF DiaphragmNBR, LSR CoreStainless steel BobineF class (155°) Assembly:Self-tapping screws Working specifications Working pressure:0,2 - 10 bar Room temperatureTu 60 °C Fluid temperature:Tm 25 °C - Tm 60 °C - ED 100% Tm 90 °C (3 min ON - 5 min OFF) Orifice:DN 8 mm; DN 10 mm Control:Normally Closed (NC); Normally Open (NO); Latching (LC) Fluid directionUnidirectional KV 90°13,00 L/min KV 180°12,26 L/mm Electrical Connections Faston 6,3 x 0,8 mm Hydraulic connections INMale thread 3/4”; Male thread 3/4” GHT OUTHose tail 10 mm; Hose tail 13 mm; Spigot 10 mm; Male thread 1/4”; Quick coupling 8mm; Quick coupling 10mm. MOQ Double 90°80 pcs Double 180°80 pcs
