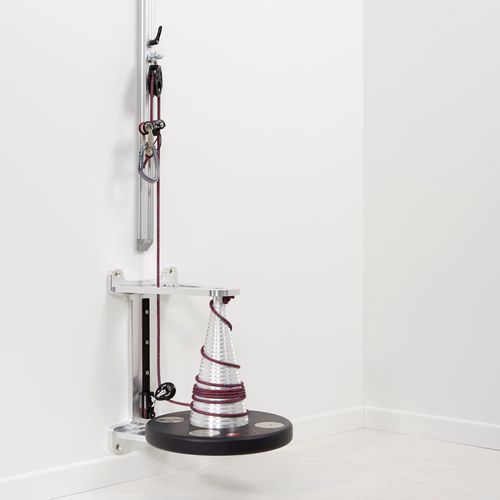

Single-cable exercise pulley RSP CONIC PRO

high

About RSP CONIC PRO
The RSP CONIC PRO is a conical-pulley resistance trainer designed to develop high-intensity directional changes and braking capacity. Its tapered axis creates a large difference between minimum and maximum diameter, producing rapid accelerations in the concentric phase that must be controlled and braked during the eccentric phase, simulating high-speed deceleration movements.

Core benefits and features

• Trains global movement patterns and displacements with emphasis on braking in directional changes.
• Acceleration tuning via adjustable shaft/output radius.
• Inertia tuning via removable integrated disc masses (each mass ≈ 30% of inertia).
• Adjustable rope output height for exercise variability.
• Anchorage option for vertical applications.

Technical specifications (summary)
Size: 45 x 35 x 45 cm (H).
Weight: 16 kg.
Accessories included/available: RSP Encoder; adapter for Chronojump encoder; portability kit.
Custom adaptations: available for specific training needs.
Spare parts examples: wall-rail pulley; chassis pulley; 4 m rope.

Moments of inertia (values)
Without masses: 722.83 kg/cm²
With 2 masses: 910.76 kg/cm²
With 4 masses: 1238.33 kg/cm²

Standard equipment

• RSP CONIC chassis
• 120 cm wall rail for rope-output height adjustment
• Ground anchorage eyebolt for vertical applications
• 4 stainless-steel disc masses
• 2 Harken Carbo pulleys (Ø 57 mm)
• 4 m high-performance rope with length regulator
• Hand grip and ankle strap
• Wall mounting kit
• Assembly manual

Accessories and spare parts (high level)

• RSP Encoder and encoder adapters
• Replacement pulleys for wall rail and chassis; replacement ropes
• Portability kit and wall-mount accessories

Technical characteristics

• Model: RSP CONIC PRO
• Dimensions: 45 x 35 x 45 cm (H)
• Weight: 16 kg
