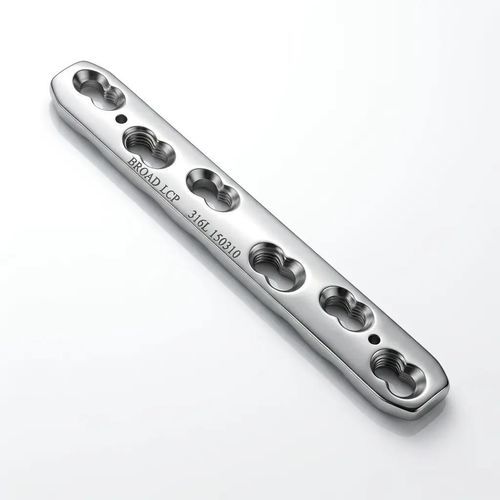

General purpose compression plate SI-1301

lockingtitaniumstainless steel

Overview
The Broad Locking Compression Plate is an orthopedic implant for internal fixation of long bones. Its wider profile is intended for larger bone segments and it is supplied in multiple sizes, hole configurations and two material options to meet varied fixation requirements.

Design and Construction
Each hole features a combination (combi) hole design: one side accepts conventional cortex screws for axial compression while the threaded side receives locking head screws that lock into the plate to form a fixed-angle construct. The design allows conventional screwing, locking, or a combination of both. The plate undersurface is contoured to reduce direct contact with the bone shaft.

Material Options

• German stainless steel
• Titanium

Available Sizes

• 1.5 mm
• 2.0 mm
• 2.4 mm
• 2.7 mm
• 3.0 mm
• 3.5 mm
• 4.0 mm
• 4.5 mm
• 5.0 mm
• 5.5 mm
• 6.0 mm
• 6.5 mm
• 7.0 mm
• 7.5 mm
• 8.0 mm

Available Hole Configurations

• 6 holes
• 7 holes
• 8 holes
• 9 holes
• 10 holes
• 11 holes
• 12 holes
• 13 holes
• 14 holes
• 15 holes
• 16 holes
• 18 holes
• 20 holes

Variants and Options
The product is offered as a configurable/variable item with multiple hole-count and plate-size variants. Page options include selection of plate size, material (Stainless Steel or Titanium), and plate finish (examples: Original/Silver, Blue, Gold). A screw-inclusion option is available (choice of recommended screws or no screws). Prices vary by variant; the displayed price range is provided on the product page.

Specifications

• Commercial name: Broad Locking Compression Plate
• Brand: SAMIS INSTRUMENTS
• SKU: SI-1301
• Indication: Internal fixation of long bones (orthopedic implant)
• Hole design: Combination (combi) holes allowing cortex screws (axial compression) and locking head screws (fixed-angle)
• Undersurface: Contoured design to reduce direct bone contact
• Materials: German stainless steel; Titanium
• Available plate sizes (screw diameter / plate size): 1.5 mm, 2.0 mm, 2.4 mm, 2.7 mm, 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm, 5.5 mm, 6.0 mm, 6.5 mm, 7.0 mm, 7.5 mm, 8.0 mm
• Available hole configurations: 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 18, 20 holes
• Product type: Variable plate (multiple variants by hole-count and material)
• Price range (as displayed): 8.00 to 40.00 (currency shown on page)
• Typical finishes shown: Original/Silver, Blue, Gold
