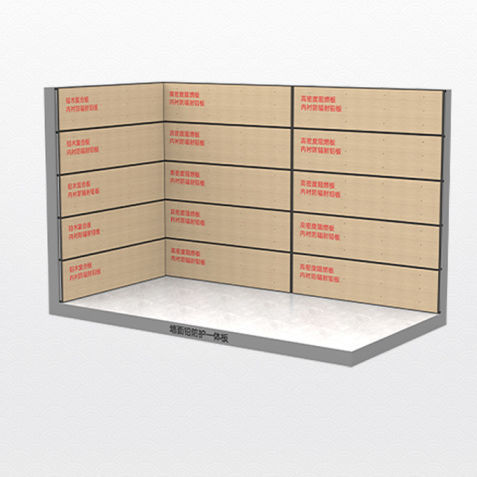

Radiation therapy room radiation shielding panel

for nuclear medecine roomsfor radiography roomslead

Product overview
Lead shielding plates are manufactured from Grade 1 electrolytic lead with a lead purity of 99.994% by casting and rolling. Standard lead equivalent values range from 1 mmPb to 50 mmPb. Density typically 11.34 g/cm³. Thickness can be customized to project requirements.

Performance features

• Designed for radiation shielding; effective at attenuating diagnostic X-rays.
• Smooth, homogeneous surface finish; customizable thickness per specification.
• Produced with strict dimensional control and supplied with test documentation; zero negative tolerance on specified thickness.
• High material purity and compact structure with no micropores, ensuring consistent attenuation.
• Good corrosion and acid–alkali resistance; stable chemical properties and high surface hardness for extended service life.

Technical parameters

• Lead equivalent: 1–50 mmPb (customizable)
• Material grade: Grade 1 electrolytic lead
• Lead purity: 99.994%
• Density: 11.34 g/cm³
• Atomic weight: 207
• Melting point: 327 °C
• Manufacturing process: casting and rolling (rolled sheet metal)
• Surface: smooth and grain-free
• Thickness tolerance: zero negative tolerance on specified thickness

Applications

• Radiology departments: Fixed shielding for X-ray rooms, CT rooms and diagnostic imaging suites.
• Radiation oncology: Shielding for therapy rooms and equipment that use ionizing radiation.
• Nuclear medicine: Shielding for imaging, therapy and handling of radioactive materials.
• Also used in radiation shielding construction, weighting and sound insulation applications.
