Radiography room radiation shielding panel lead
Add to favorites
Compare this product
Characteristics
- Use
- for radiography rooms
- Material
- lead
Description

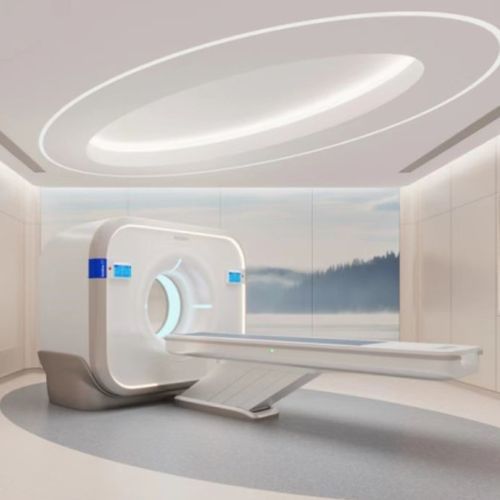

I. Standard dimensions of CT room
II. Key requirements for CT room
1. Radiation protection specifications
2. Structure & load‑bearing requirements
Technical specifications
- 1. Scan room (main equipment room)
- Minimum area: ≥30 m²
- Minimum side length: ≥4.5 m
- Common standard dimensions:
- Conventional 16/32/64‑slice CT: 5.0 m × 6.0 m (30 m²)
- High‑end CT (128‑slice and above): 5.5 m × 6.5 m or 6.0 m × 6.0 m
- Clear height: ≥3.0 m; 3.2 m or above recommended (to reserve space for ceiling, HVAC and pipelines)
- 2. Control room (operator room)
- Area: ≥15 m²
- Common dimension: approx. 4.0 m × 4.0 m
- Observation window position: facing the scanning area for convenient patient observation
II. Key requirements for CT room
1. Radiation protection specifications
- Ceiling options: ① Welded keel + flame‑retardant board + lead sheet ② Welded keel + lead‑wood composite panel ③ Barium sulfate layer on the upper floor slab ④ Welded keel + barium sulfate board ⑤ Barium sulfate plaster on ceiling
- Wall options: ① Barium sulfate plaster ② Welded keel + lead sheet ③ Welded keel + barium sulfate board ④ Welded keel + lead‑wood composite panel ⑤ Lead sheet ⑥ Barium sulfate + lead sheet
- Floor options: ① Barium sulfate ② Lead sheet
- Lead equivalence: walls, ceiling and floor generally ≥4.0 mmPb (available shielding materials: barium sulfate, lead sheet, lead‑wood composite panel, barium sulfate board)
- Lead equivalence of protective doors and observation windows: ≥4.0 mmPb
- All cable penetrations and trunking must be sealed with lead sheets to prevent radiation leakage
- Door interlock system is mandatory: X‑ray exposure cannot be activated if the door is not fully closed
2. Structure & load‑bearing requirements
- Floor load capacity ≥5.0 kN/m²
- Equipment foundation or vibration isolation base is recommended for large CT scanners
- Concrete or solid brick walls are recommended; lightweight hollow structures should be avoided
- Opening size for motorized radiation protective door: ≥1400 mm × ≥2000 mm
- Opening size for manual radiation protective door: ≥800 mm × ≥2000 mm
- Opening size for radiation shielding observation window: ≥1200 mm × ≥800 mm, bottom height 950 mm above finished floor
- Ionizing radiation warning signs and operating indicator lights shall be installed outside both motorized and manual protective doors
Technical specifications
- Minimum scan room area: ≥30 m²
- Minimum scan room side length: ≥4.5 m
- Conventional CT room typical size: 5.0 m × 6.0 m (30 m²)
- High‑end CT suggested sizes: 5.5 m × 6.5 m or 6.0 m × 6.0 m
- Clear ceiling height: ≥3.0 m (3.2 m or above recommended)
- Control room area: ≥15 m² (approx. 4.0 m × 4.0 m)
- Recommended shielding materials: barium sulfate, lead sheet, lead‑wood composite panel, barium sulfate board
- Lead equivalence (walls/ceiling/floor/doors/windows): generally ≥4.0 mmPb
- Floor load capacity: ≥5.0 kN/m²
- Motorized protective door opening: ≥1400 mm × ≥2000 mm
- Manual protective door opening: ≥800 mm × ≥2000 mm
- Radiation shielding observation window: ≥1200 mm × ≥800 mm, bottom height 950 mm above finished floor
- All penetrations & trunking must be sealed with lead sheets
- Door interlock: mandatory to prevent X‑ray activation when door not fully closed
