Radiography radiation shielding sheet

radiation therapycustom-made1.00 mm

Product Introduction

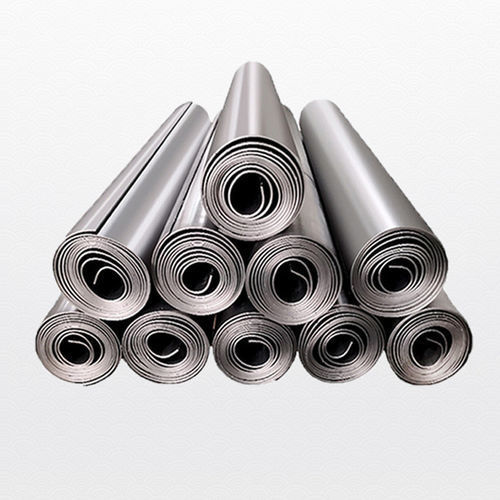

Lead shielding plates are manufactured from Grade 1 electrolytic lead with a typical purity of 99.994% and a density of 11.34 g/cm³. Produced by casting and rolling, these plates provide lead-equivalent shielding from 1 mmPb up to 50 mmPb (customizable by project). They combine high material homogeneity and chemical stability, making them suitable for medical radiation protection and other industrial shielding applications.

Product Performance

• Designed for radiation shielding: effective attenuation of diagnostic X-rays and other ionizing radiation.
• Smooth, grain-free surface with precise, customizable thickness and guaranteed zero negative thickness tolerance.
• High material purity and density ensure consistent shielding performance with no micropores.
• Excellent corrosion resistance and acid/alkali tolerance for long service life in clinical and construction environments.
• Quality-controlled production with available testing and compliance documentation for medical radiation shielding requirements.

Technical Parameters
Lead Equivalent: 1–50 mmPb (Customizable)
Material Grade: Grade 1 Electrolytic Lead
Atomic Weight: 207
Melting Point: 327 °C
Density: 11.34 g/cm³
Lead Purity: 99.994%

Application Fields

• Radiology Department: Structural shielding for X-ray rooms, fluoroscopy suites and CT rooms to protect staff and adjacent areas.
• Radiation Oncology: Local shielding solutions for treatment rooms and equipment enclosures requiring high lead equivalence.
• Nuclear Medicine: Shielding for imaging and handling areas where gamma emitters or other radionuclides are used.

Characteristics / Technical Specifications

• Manufacturing: casting and rolling processes to produce homogeneous lead sheets.
• Lead purity: typically 99.994% (Grade 1 electrolytic lead).
• Density: 11.34 g/cm³.
• Lead equivalent range: 1 mmPb to 50 mmPb, customizable to project requirements.
• Physical properties: smooth, grain-free surface; high surface hardness; high dimensional precision; no micropores.
• Chemical resistance: excellent corrosion resistance and acid-alkali tolerance.
• Performance guarantees: compliant with diagnostic X-ray protection requirements; zero negative tolerance on thickness; testing and documentation available.
• Typical uses: X-ray and CT rooms, radiation therapy shielding, acid-resistant construction, weighting and sound insulation applications.
