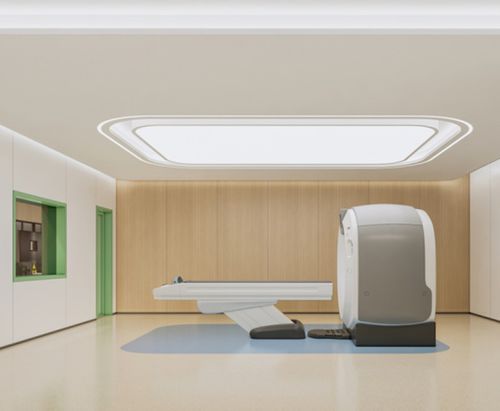

- Radiography room radiation shielding panel
- Shandong Hongxinyu Medical Technology Co., Ltd.
Lead radiation shielding panel DRfor radiography rooms
Add to favorites
Compare this product
Characteristics
- Material
- lead
- Use
- for radiography rooms
Description
I. Mandatory Dimensions in National Standards (Must Be Complied With)
II. Radiation Protection Requirements
Ceiling construction options:
Wall construction options:
Floor construction options:
Technical specifications
- Examination Room (Equipment Room): Minimum usable area: ≥20 m²; Minimum side length: ≥3.5 m; Clear height: ≥3.0 m (≥3.2 m recommended)
- Control Room: Area: ≥15 m²; Clear height: ≥2.8 m
- An equipment foundation or overhead rail is recommended for DR systems (to be confirmed based on drawings provided by the equipment manufacturer)
- Concrete or solid brick walls are recommended; lightweight hollow structures shall be avoided. Wall thickness shall be no less than 240 mm
- Opening size for motorized radiation protective door: ≥1400 mm × ≥2000 mm
- Opening size for manual radiation protective door: ≥800 mm × ≥2000 mm
- Opening size for radiation shielding observation window: ≥1200 mm × ≥800 mm, with its bottom edge 950 mm above finished floor
- Ionizing radiation warning signs and operating indicator lights shall be installed outside both motorized and manual protective doors
II. Radiation Protection Requirements
Ceiling construction options:
- ① Welded keel + flame‑retardant board + lead sheet
- ② Welded keel + lead‑wood composite panel
- ③ Barium sulfate shielding on upper‑floor slab
- ④ Welded keel + barium sulfate board
- ⑤ Barium sulfate plaster applied to ceiling
Wall construction options:
- ① Barium sulfate plaster
- ② Welded keel + lead sheet
- ③ Welded keel + barium sulfate board
- ④ Welded keel + lead‑wood composite panel
- ⑤ Lead sheet
- ⑥ Barium sulfate + lead sheet composite shielding
Floor construction options:
- ① Barium sulfate shielding
- ② Lead sheet
- Lead equivalent: Walls, ceiling and floor generally ≥3 mmPb (Applicable materials: barium sulfate, lead sheet, lead‑wood composite panel, barium sulfate board)
- Lead equivalent of protective doors and observation windows ≥3 mmPb
- All cable penetrations and cable trunking must be sealed with lead sheets to prevent radiation leakage
- Door interlock system is mandatory: X‑ray exposure cannot be triggered if the door is not fully closed
Technical specifications
- Category: Protective materials / Shielding works
- Product name / Work: Contract DR Room Radiation Shielding Works
- Minimum usable area (Examination/Equipment Room): ≥20 m²
- Minimum side length (Examination Room): ≥3.5 m
- Clear height (Examination Room): ≥3.0 m (recommend ≥3.2 m)
- Control Room area: ≥15 m²; clear height: ≥2.8 m
- Recommended wall thickness: ≥240 mm (concrete or solid brick)
- Motorized protective door opening: ≥1400 mm × ≥2000 mm
- Manual protective door opening: ≥800 mm × ≥2000 mm
- Observation window opening: ≥1200 mm × ≥800 mm; bottom edge 950 mm above finished floor
- Typical lead equivalent for structure, doors and windows: ≥3 mmPb
- Ceiling/wall/floor shielding options include barium sulfate materials, lead sheet, lead‑wood composite, barium sulfate board, and composite solutions
- All cable penetrations and trunking to be sealed with lead sheet; door interlock required
