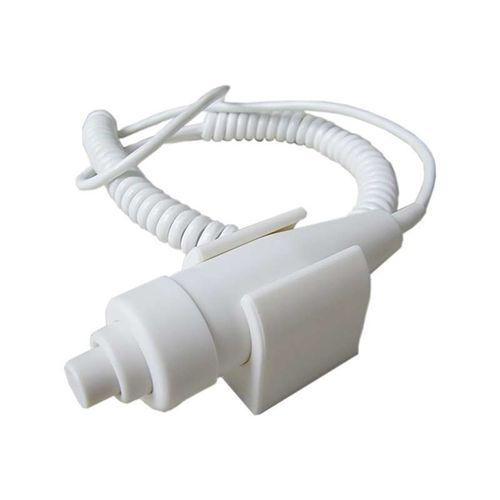

Radiography system switch L01A

push-buttonsingle-pole

Short Description

• Streamline design outlook, comfortable handle.
• Housing adopts ABC engineering plastic, anti-shock and fire retardant.
• Two steps design, 3-core or 4-core wire can be chosen freely.
• Inner adopts OMRON micro switch, high sensitivity.
• Mechanical life of 1,000,000 times above.
• Electrical life of 200,000 times above.

Product Features

• Material: (1) frosted surface (2) smooth surface
• Features: (1) Using Omron long life micro switch design (2) Double spring two step design (3) Button cap platform design (4) Can replace GE, Omron, Fuji and other brands hand switch (5) Mute design, soft feel
• Scope of application: digital x ray machine, digital DR gastrointestinal machine, C arm, veterinary X-ray machine
• The plug can be customized (need to provide wiring mode)

Mechanical Parameters
mechanical life: ≤ 200,000 times;≤ 200,000 times
Handle sizeLength10.5cm(Max.)
Diameter:3cm
Spring wire:standard 4 core 3 meters (3 core optional, wire length can be customized)
Gear:2


Electrical Parameters
switching life:≤ 400,000 times
Operating voltage:AC 125V 1A;DC 30V 2A


Application

• Applicable to x-ray exposure of radiography or fluoroscopy equipment
• X ray hand exposure hand switch is mainly used on portable x ray, mobile x ray, stationary x ray, analog x ray, digital x ray, radiography x ray etc x ray equipment.
• Also applicable to beauty laser device, healthy recovery device etc field.

Packaging & Delivery

• Waterproof and shockproof carton
• 1 piece: Packing size: 17*8.5*5.5cm, Gross Weight 0.5KG
• 10 pieces: Packing size: 29*17*19cm, Gross Weight 1.7KG
• 50 pieces: Packing size: 45*28*33cm, Gross Weight 11KG
• 100 pieces: Packing size: 54*47*49cm, Gross Weight 23KG
• Delivered by Air Express: DHL, FEDEX, UPS, TNT, EMS etc.
• Delivery: 1-10 pieces within 3 days; 11-50 pieces within 5 days; 51-100 pieces within 10 days.

Certifications

• CE
• Quality Certification: CE
• Instrument classification: Class I
• Safety standard: GB/T18830-2009

Characteristics / Technical Specifications

• Brand Name: Newheek
• Model Number: L01-4C3M
• Power Source: Electric
• Product name: Exposure hand switch
• Voltage: AC 125V; DC 30V
• Dimensions: 10.5*3cm
• Operation Method: Wire Control
• Warranty: 1 Year
• Material: Plastic
• Shelf Life: 1 year
