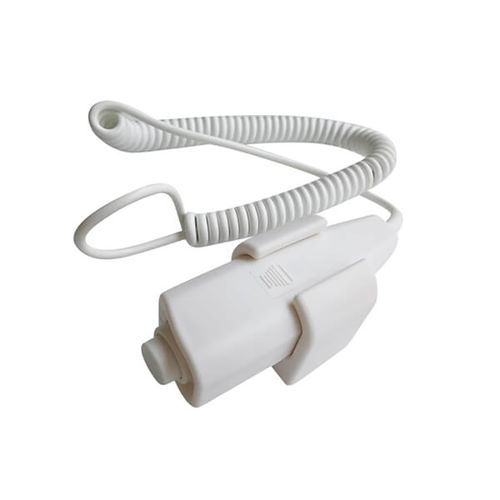

Radiography system switch NK-L04

push-button

Overview: This handheld two-step exposure manual switch is designed for mobile and portable X-ray equipment. It provides a comfortable grip, ABS engineering-plastic housing and an Omron internal micro switch for extended service life.

Key features:

• Materials: matte or smooth surface options; housing made of ABS engineering plastic (wear-resistant, heat-resistant, stable).
• Switch design: Omron internal micro switch for extended life, quiet operation and soft hand feel.
• Structure: detachable design with double-spring two-step mechanism (Step I = exposure ready; Step II = exposure control).
• Cable/wiring: selectable 3-core or 4-core cable; standard lengths 3 m, 6 m, 10 m; wire length customizable; spring-coil option available.
• Applications: suitable for digital X-ray, digital DR gastrointestinal machines, C-arm, DRX, veterinary X-ray, portable/mobile/fixed X-ray, analog X-ray, fluoroscopy equipment; also adaptable for certain cosmetic/laser and rehabilitation devices.

Product presentation / visuals:

• Streamlined shape for comfortable hand grip.
• Optional spring coil section on the cable (example: 3 m wire with 30 cm spring coil).

Notes found in product detail text:

• The short product description states a very long life for the internal switch (mechanical life >50,000,000 cycles and electrical life >300,000 cycles).
• A separate technical table on the page lists different lifecycle figures (mechanical life ≤200,000 cycles; switching life ≤400,000 cycles). Both entries appear in the original product content.

Technical specifications:

• Model (page reference): NK-L04 (full model shown on page: NK-L04 4c3m).
• Main operation voltage (page): 220 V AC; main current: 10 A.
• Housing material: ABS engineering plastic.
• Hand switch cable core/wiring: selectable 3-core or 4-core; standard lengths: 3 m, 6 m, 10 m; spring-wire example: standard 4-core 3 m (3-core optional); wire length customizable; plug customizable by wiring requirements.
• Two-step control: Step I = exposure ready; Step II = exposure control.
• Mechanical parameters: handle length 10.5 cm; maximum diameter 3 cm; gear count: 2; mechanical life (short description): >50,000,000 cycles; mechanical life (spec table): ≤200,000 cycles.
• Electrical parameters (spec table): switching life ≤400,000 times; operating ratings shown in spec table: AC 125 V 1 A; DC 30 V 2 A.
• Environmental limits (page table): ambient temperature -20°C to 7(FC (as shown on page); relative humidity <93%; atmospheric pressure 50–106 kPa.
• Structure/other features: detachable construction; double-spring two-step; quiet operation and soft hand feeling; plug can be customized per wiring requirements.
