Radiography system switch L06 Hand Switch

push-button

Single-button X-ray exposure hand switch L06 designed for dental and general radiography applications. Durable ABS housing and an internal Omron micro switch provide reliable switching performance. Compatible with a range of portable, mobile and fixed radiography systems; cable and plug options are customizable.

Materials & finish

• Housing: ABS engineering plastic (white), stable and impact resistant.
• Surface options: matte or smooth finish.

Key features

• Internal Omron micro switch to reduce oxidation and extend service life.
• Button made from the same material as the housing to simplify maintenance and sourcing.
• One-step control for dental X-ray exposure (single-button operation).
• LED indicator: No.
• Plug/wiring: plug type and wiring can be customized (specify wiring mode when ordering).

Scope of application

• Designed primarily for dental X-ray machines (commonly used on dental tablet systems).
• Also suitable for portable, mobile and fixed X-ray units, analog and digital radiography/fluoroscopy equipment, and some cosmetic laser devices.

Configuration (standard & customizable)

• Standard: 2-core, 3 m coiled cable (standard includes 30 cm spring coil section).
• Optional: 2-core with 6 m or 10 m cable; other custom wiring options available on request.

Reported lifetime / performance notes

• Product text reports mechanical life > 1,000,000 cycles and electrical life > 200,000 cycles.
• Specification table on the same page lists mechanical life ≤ 200,000 cycles and switching life ≤ 400,000 cycles. Both values are reported on the product page.

Visuals & accessories

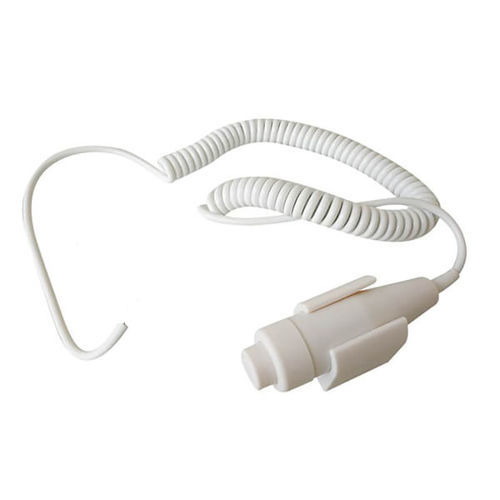

• Supplied as a single-button hand switch; optional cradle shown in images. Product visuals illustrate button, cradle and cable length.

Technical specifications

• Model: L06 Hand Switch (single-button X-ray exposure hand switch).
• Operating voltage: 125 V AC (product page lists 125 V); electrical parameters also show AC 125 V 1 A and DC 30 V 2 A.
• Current / rating: page meta lists 3 A; specifications also reference 125 V 1 A (AC) and 30 V 2 A (DC).
• Housing material: ABS plastic (white).
• Standard cable: 2-core coiled cable, 3 m (includes 30 cm spring coil section).
• Optional cable lengths: 6 m or 10 m (custom wiring available).
• Handle dimensions: length ≈ 10 cm; maximum diameter ≈ 3 cm.
• Spring wire: standard 2-core, 3 m (custom lengths available).
• Gear: 1.
• Mechanical life (spec table): ≤ 200,000 cycles (note: product text also reports > 1,000,000 cycles).
• Switching life (electrical parameter): ≤ 400,000 cycles.
• Ambient temperature: -20°C to 70°C.
• Relative humidity: <93%.
• Atmospheric pressure: 50–106 kPa.
