Radiography system switch L03

push-button

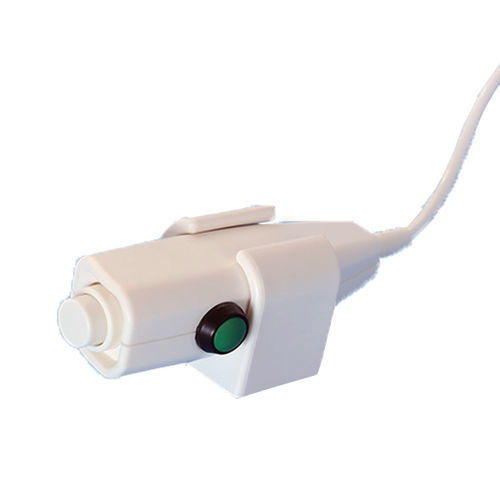

The L03 exposure hand switch is a three-step X-ray exposure control for digital radiography systems, C-arm units and veterinary X-ray equipment. It combines an ergonomic handle and ABC engineering-plastic housing with high-sensitivity OMRON micro switches. Available in 4-core or 6-core wiring with multiple cable-length options and customizable plugs to fit system requirements.

Features

• Streamlined housing and comfortable handle; housing made of ABC engineering plastic (anti-shock, fire retardant).
• Three-step (three-function) operation: Step 1 = exposure ready, Step 2 = exposure, Step 3 = collimator control (double-spring three-step mechanism).
• Internal OMRON micro switches for high sensitivity and quiet operation.
• Interchangeable with many OEM hand switches (GE, Siemens, Fuji, etc.); plug wiring can be customized (customer must provide wiring diagram).
• Standard wiring options: 4-core (standard) or 6-core (optional); spring-coil cable option and configurable cable length.

Product detail

• Material options: frosted or smooth surface finish.
• Typical applications: digital X-ray machines, digital DR gastrointestinal units, C-arm systems, veterinary X-ray equipment, portable/mobile/stationary radiography and fluoroscopy systems; may be used in some cosmetic laser and recovery devices.
• Operation voltage noted on product summary: 220 VAC (see technical table for detailed electrical ratings).

Technical parameters (as reported)

• Mechanical parameters:
  • Mechanical life (table): ≤ 200,000 cycles.
  • Handle length: 10.5 cm; max diameter: 3 cm.
  • Cable example: standard 4-core, 3 m (6-core optional); wire length customizable.
  • Gear/steps: 3.
• Electrical parameters:
  • Switching life (table): ≤ 400,000 cycles.
  • AC rating (table): 125 V, 1 A.
  • DC rating (table): 30 V, 2 A.
• Marketing life claims (page): mechanical life ≥ 50,000,000 cycles; electrical life ≥ 300,000 cycles (reported separately from technical table).

Applications / Compatibility

• Designed mainly for X-ray exposure control on portable, mobile and stationary X-ray units and analog/digital DR systems. Product page indicates compatibility or matching capability with major OEM systems such as Siemens and GE.

Specifications

• Brand: Newheek
• Model: L03
• Product name: X-ray exposure hand switch (3-function)
• Type: 3-function switch (Step1: exposure ready; Step2: exposure; Step3: collimator control)
• Housing material: ABC engineering plastic (anti-shock, fire retardant)
• Switch type: OMRON micro switch (high sensitivity)
• Standard wiring: 4-core (standard) or 6-core (optional); spring-coil option available
• Wire length options: 3 m (table example), 4 m, 6 m, 10 m (page-listed options); custom lengths available
• Handle length: 10.5 cm; max diameter: 3 cm
• Mechanical life (table): ≤ 200,000 cycles; marketing claim on page: ≥ 50,000,000 cycles
• Switching/electrical life (table): switching life ≤ 400,000 cycles; marketing electrical life claim: ≥ 300,000 cycles
• Electrical ratings (table): AC 125 V 1 A; DC 30 V 2 A (operation voltage also listed as 220 VAC in product summary)
• Current (product summary): 10 A (as listed in product meta)
• Place of origin: Shandong, China
• Customization: plug and wiring customization available (customer must provide wiring mode)
