Radiography system switch L05
push-button

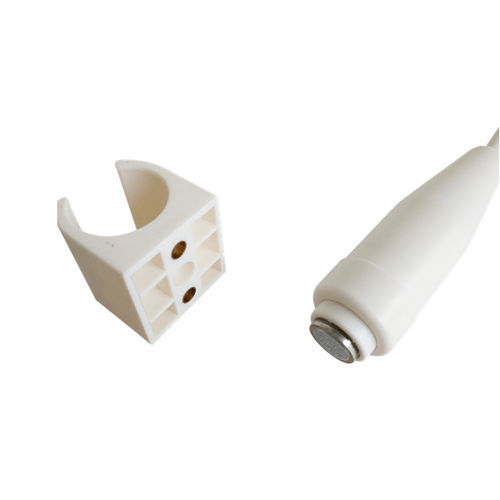

Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 2
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 3
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 4
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 5
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 6
Radiography system switch - L05 - Shandong Newheek Image Equipment - push-button - image - 7
Add to favorites
Compare this product
Go to the Shandong Newheek Image Equipment website for more information

Characteristics

Applications
for radiography systems
Type
push-button

Description

Summary

  • Model: L05 — Newheek one-button X-ray exposure hand switch for control of X-ray exposure on medical radiography equipment.
  • Ergonomic ABS handle with streamlined exterior for handheld operation.


Overview

  • Designed for exposure control on portable, mobile and stationary X-ray systems, including dental X-ray and bone mineral density instruments.
  • Housing made of ABS engineering plastic, anti-shock and flame-retardant.


Materials & Options

  • Surface finish: frosted or smooth.
  • Button material: metal.
  • Inner switch: Omron micro switch (high sensitivity).
  • LED indicator: optional.
  • Buzzer: optional.
  • Plug/wiring: customizable; specify wiring mode when ordering.


Configuration & Cable

  • Standard core: 2-core (standard offering).
  • Standard length: 6 m cable with 60 cm spring coil segment.
  • Other available options: 2-core 3 m; 2-core 6 m or 10 m; custom lengths and core counts (3-core, 4-core, 6-core optional for spring-wire configurations).


Application

  • For X-ray exposure control in radiography and fluoroscopy equipment: portable, mobile and stationary X-ray systems, analog and digital units.
  • Also suitable for devices requiring controlled exposure switching, such as aesthetic laser equipment and health recovery devices.


Design highlights

  • Reported mechanical life figures vary in product documentation; some sections state '1,000,000 times and above' while the specification table lists '≤ 200,000 times'.
  • Electrical switching life values also differ across texts; product meta notes '200,000 times and above' while the specification table indicates switching life '≤ 400,000 times'.


Characteristics / Technical specifications

  • Model name: L05.
  • Brand: Newheek.
  • Product: X-ray exposure hand switch (one-button, step-1 exposure control).
  • Operating voltage: AC 125 V (rated AC 125V 1A); DC rating: 30 V 2A.
  • Operating current: listed as 3 A in some sources; electrical parameters show AC rating 125V 1A.
  • Housing material: ABS plastic (white).
  • Handle length: ≈ 10 cm; maximum diameter: ≈ 3 cm; gear: 1.
  • Ambient temperature: -20 °C to 70 °C; relative humidity: <93%; atmospheric pressure: 50–106 kPa.
  • LED: optional (where fitted).
  • Mechanical life in specifications: ≤ 200,000 cycles; electrical switching life in specifications: ≤ 400,000 cycles.
  • Standard/configuration table: standard 2-core 3 m wire (other entries list 2-core 6 m or 10 m); custom options available on request.
