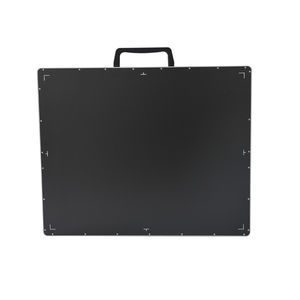

Veterinary radiography flat panel detector NK4343X

portable17 x 17

Product Overview

• NK4343X is a new generation of X-ray flat panel detector.
• CsI technology can significantly reduce the exposure dose and improve image quality.
• Fast imaging workflow allows the operator to easily complete the shooting of the animal.
• Functions meet a variety of applications, including real-time camera, non-destructive testing, and other fields.

Highlights

• Innovative a-Si portable detector assembly for veterinary and medical purposes
• Fast collection
• Multiple trigger mode
• 16-bit conversion
• Stable and reliable AED control
• High resolution image quality

Product Purpose

• Digital imaging system replaces the original water-washed film imaging method

Product Scene

• Can be used with medical X-ray machines, portable machines, mobile X-ray machines, and other equipment

Parameters
Model | NK4343X (wired)
Picture | [Image](https://www.newheekxray.com/uploads/NK4343X.jpg)
Detector technology | a-Si
Scintillator | CsI
Image size | 17 X 17 inch
Pixel matrix | 3072 × 3072
Pixel pitch | 139µm
A / D conversion | 16bit
Spatial resolution | 3.6 LP / mm
Image acquisition time | Preview Image(3s); Full Image(5s)
X-ray voltage range | 40-150 KV
Data interface | GigE
Trigger Mode | AED/Software
Dimensions | 46 × 46 × 1.5 cm
Detector Weight | 4kg
Detector Face Load | 150 kg
Water tightness | IPX1
Power Dissipation | 30 W
Adapter input | AC 100-240V, 50-60Hz
Adapter output | DC 24V, 2.5A
Detector Protection Material | Carbon, PC+ABS
Detector housing material | Aluminum Alloy
Operating Environment | 5-35ºC, 30-80% RH (Non-Condensing)

Packaging & Delivery

• Waterproof and shockproof carton
• Detector size: 460 x 460 x 15cm

Product Certificates

• Certificates available (images shown on page)

Characteristics / Technical Specifications

• Brand Name: NEWHEEK
• Model Number: NK4343X
• Detector Technology: Amorphous Silicon (a-Si)
• Scintillator: CsI
• Spatial Resolution: 3.6Lp/mm
• Pixels Matrix: 3072 × 3072
• AD Conversion: 16bits
• Image size: 17 x 17 inch
• Pixel pitch: 139µm
• Image acquisition time: Preview Image(3s); Full Image(5s)
• X-ray voltage range: 40-150 KV
• Data interface: GigE
• Trigger Mode: AED/Software
• Dimensions: 46 × 46 × 1.5 cm
• Detector Weight: 4kg
• Detector Face Load: 150 kg
• Water tightness: IPX1
• Power Dissipation: 30 W
• Adapter input: AC 100-240V, 50-60Hz
• Adapter output: DC 24V, 2.5A
• Detector Protection Material: Carbon, PC+ABS
• Detector housing material: Aluminum Alloy
• Operating Environment: 5-35ºC, 30-80% RH (Non-Condensing)
