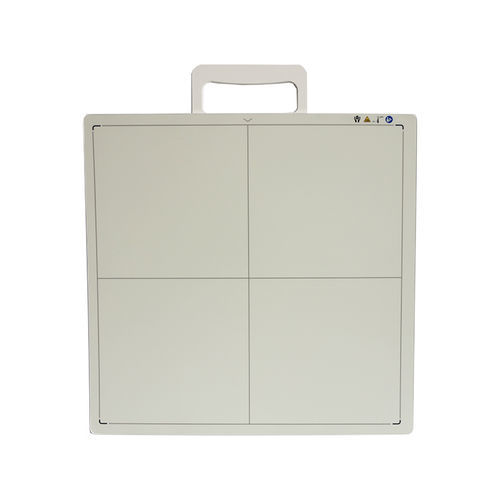

Multipurpose radiography flat panel detector NK4343V

portablewireless17 x 17

Product Overview
NK4343V smart wireless cassette size flat panel detectors, is CsI / GOS based, portable A-Si detector. Reliable iSync+ AED, stable wireless connection, long battery life, high image quality and light weight design, establish NK4343V as the standard of quality in X-ray DR retrofit and system application.

• Better image quality with lower dose
• Easy installation and shareable between diverse X-ray systems
• Always charging with backup cable

Product Purpose
It can replace traditional film and upgrade to a digital imaging system
Product Scene
It can be used with medical X-ray machines, portable machines, and mobile X-ray machines
Parameters
Model | NK4343V (wireless)
Detector technology | a-Si
Scintillator | CsI
Image size | 43 × 43cm
Pixel matrix | 3072 × 3072
Pixel pitch | 139µm
A / D conversion | 16bit
Spatial resolution | 3.6 LP / mm
Image acquisition time | Preview Image(3s); Full Image(5s)
X-ray voltage range | 40-150 KV
Battery standby time | 8H
Data interface | 2.4G and 5G 802.11 a/b/g/n/ac
Trigger Mode | AED/Software
Dimensions | 46 × 46 × 1.5 cm
Detector Weight | 4.6kg
Detector Face Load | 150 kg
Water tightness | IPX1
Power Dissipation | 20 W
Adapter input | AC 100-240V, 50-60Hz
Adapter output | DC 24V
Detector Protection Material | Carbon, PC+ABS
Detector housing material | Aluminum Alloy
Operating Environment | 5-35ºC, 10-90% RH (Non-Condensing)
Packaging & Delivery
Waterproof and shockproof carton
Detector size: 460 x 460 x 15cm
Characteristics / Technical Specifications

• Brand Name: NEWHEEK
• Model Number: NK4343V
• Product Name: X-ray Wireless Cassette 1717
• Detector Technology: Amorphous Silicon (a-Si)
• Scintillator: CsI
• Pixel Pitch: 139μm
• Spatial Resolution: 3.6Lp/mm
• Pixels Matrix: 3072x3072
• AD Conversion: 16bits
• Image size: 43 × 43cm
• Image acquisition time: Preview Image(3s); Full Image(5s)
• X-ray voltage range: 40-150 KV
• Battery standby time: 8H
• Data interface: 2.4G and 5G 802.11 a/b/g/n/ac
• Trigger Mode: AED/Software
• Dimensions: 46 × 46 × 1.5 cm
• Detector Weight: 4.6kg
• Detector Face Load: 150 kg
• Water tightness: IPX1
• Power Dissipation: 20 W
• Adapter input: AC 100-240V, 50-60Hz
• Adapter output: DC 24V
• Detector Protection Material: Carbon, PC+ABS
• Detector housing material: Aluminum Alloy
• Operating Environment: 5-35ºC, 10-90% RH (Non-Condensing)
