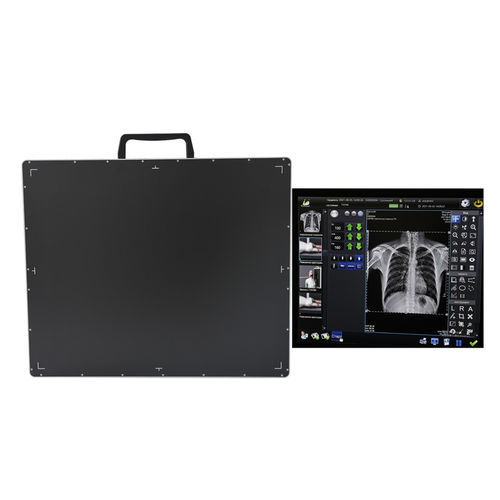

Veterinary radiography flat panel detector NK3543W

for multipurpose radiographyfor joint radiographyportable

Product overview
The NK3543W is a wireless digital X-ray DR flat panel detector designed for fast, high-resolution radiographic imaging in clinical and mobile environments. It delivers full-resolution image transfer within seconds and supports integration with existing X-ray systems.

Key features

• 16-bit high-precision A/D conversion for improved image gradation and detail
• Stable and reliable exposure control for consistent radiographs
• Endurance time up to 14 hours for extended mobile use
• High conversion efficiency and wide dynamic range
• Wireless, portable flat panel detector for easy positioning
• Enhanced X-ray absorption in low-resolution regions for improved diagnostic contrast

Technical specifications

• Model: NK3543W (wireless)
• Detector technology: a-Si
• Scintillator: CsI
• Image size: 35×43 cm
• Pixel matrix: 2560×3072
• Pixel pitch: 139µm
• A/D conversion: 16bit
• Spatial resolution: 3.6 LP/mm
• Image acquisition time: 2.5 s
• X-ray voltage range: 40-150 KV
• Battery standby time: 8H
• Data interface: 802.11n, ac
• Trigger Mode: AED/Software
• Dimensions: 38.3×46×1.5 cm
• Detector Weight: 3.0 kg
• Detector Face Load: 300 kg
• Water tightness: IP54
• Power Dissipation: 20 W
• Adapter input: AC 100-240V, 50-60Hz
• Adapter output: DC 24V
• Detector Protection Material: Carbon, PC+ABS
• Detector housing material: Aluminum Alloy
• Operating Environment: 5-35ºC, 10-75% RH (Non Condensing)

Compatibility & typical applications

• Compatible with current X-ray generators and DR systems via standard interfaces
• Suitable for general radiography, orthopedics, emergency imaging, mobile radiography and veterinary use
• Portable form factor for bedside and field deployments

Ordering information
Spot price does not include freight. Contact supplier for integration support, installation options and service agreements.
