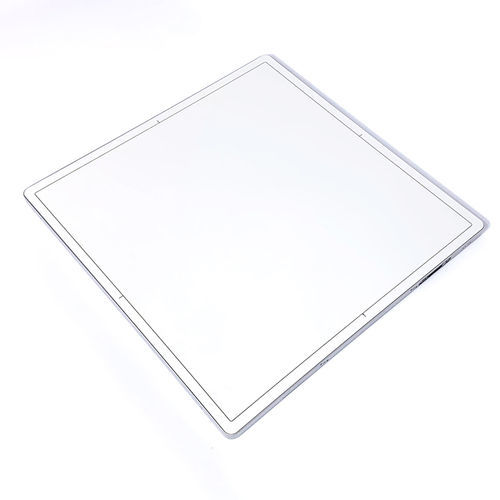

Multipurpose radiography flat panel detector NK3543Z

for veterinary radiographyportablewaterproof

NK3543Z is a high-performance tethered X‑Ray flat panel detector engineered for veterinary and medical digital radiography, delivering low radiation dose and high image quality while enabling fast imaging workflows. It is suitable for both new digital systems and retrofit of existing veterinary and medical DR systems.

Highlights

• CsI scintillator to reduce exposure dose and improve image quality
• Fast imaging workflow for efficient operation
• Multiple trigger modes (AED / Software)
• 16-bit A/D conversion for high grayscale depth
• Designed for portable, mobile and fixed medical X‑ray machines

Technical specifications

• Model: NK3543Z (wired)
• Detector technology: a-Si (amorphous silicon)
• Scintillator: CsI
• Image size: 35 × 43 cm
• Pixel matrix: 2560 × 3072
• Pixel pitch: 139 µm
• A/D conversion: 16 bit
• Spatial resolution: 3.6 LP/mm
• Image acquisition time: 1 s
• X‑ray voltage range: 40–150 kV
• Data interface: GigE
• Trigger mode: AED / Software
• Dimensions (detector): 38.3 × 46 × 1.5 cm
• Detector weight: 2.8 kg
• Detector face load: 300 kg
• Water tightness: IP54
• Power dissipation: 20 W
• Adapter input: AC 100–240 V, 50–60 Hz
• Adapter output: DC 24 V
• Detector protection material: Carbon, PC+ABS
• Detector housing material: Aluminum alloy
• Operating environment: 5–35 °C, 10–75% RH (non‑condensing)
• Purpose: Replace traditional film and upgrade to a digital imaging system
• Typical scenes: Compatible with medical X‑ray machines, portable machines, and mobile X‑ray machines
