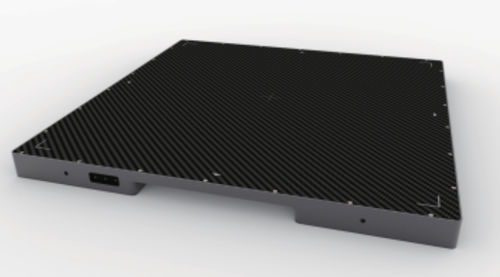

Multipurpose radiography flat panel detector Whale4343FSI

for veterinary radiography17 x 17

Product description
Whale4343FSI is a fixed digital X‑ray flat panel detector based on mature amorphous silicon (a‑Si) sensor technology. Designed for clinical radiography and industrial NDT, it delivers wide dynamic range and low noise imaging suitable for human medical radiography, veterinary and industrial inspection workflows. The detector is available in a complete product portfolio with factory-level pricing for volume procurement.

Important features

• 16‑bit A/D quantization for high‑precision image detail and consistent radiographic output
• Dual calibration (software + hardware) to maintain stable imaging accuracy over time
• High radiation tolerance ≥10000 Gy for prolonged exposure environments
• Protective housing in carbon fiber and aluminum alloy for mechanical protection and reduced weight
• Low power consumption: 14 W typical, suitable for extended clinical operation
• Wide operating and storage temperature ranges to support varied clinical and industrial environments

Commercial information

• FOB Price: US $0.5 - 9,999 / Piece
• Min. Order Quantity: 100 Piece/Pieces
• Supply Ability: 10000 Piece/Pieces per Month

Specifications

• Brand: Newheek
• Model: Whale4343FSI
• Detector technology: a‑Si (Amorphous Silicon)
• Scintillator: Gadolinium oxysulfide / Cesium iodide (optional)
• Effective imaging area: 430×430 mm
• Pixel matrix: 3072×3072
• Pixel pitch: 140 µm
• A/D conversion: 16 bits
• Image calibration: Software calibration & Hardware calibration
• Radiation resistance: ≥10000 Gy
• Protective housing material: Carbon fiber + Aluminum alloy
• Overall dimension (L×W×H): 470×470×30 mm
• Net weight: 5 Kg
• Power supply: 100~240 VAC, 50/60 Hz
• Power dissipation: 14 W
• Operating temperature: 10~35 ℃
• Storage temperature: -10~50 ℃
• Vibration standard: IEC/EN 60721-3 class 2M3 (10~150 Hz, 0.5 g)
• Ingress Protection: IPX0
• Drop resistance: IEC/EN 60721-3 class 2M3 (11 ms, 2 g)
