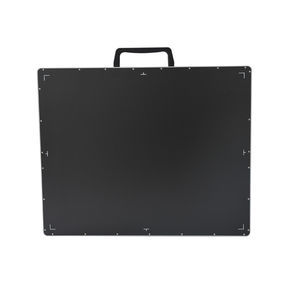

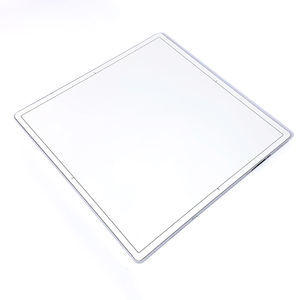

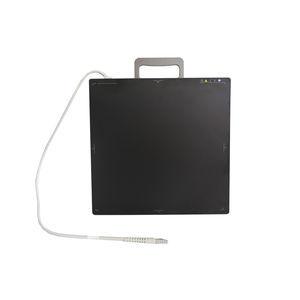

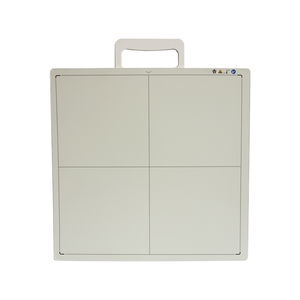

Veterinary radiography flat panel detector NK3543W

for multipurpose radiographyfor joint radiographyportable

Overview
The NK3543W is a wireless digital DR flat panel detector providing high-definition X‑ray images with fast, stable wireless transmission compatible with standard radiography systems.

Key features

• 16-bit high-precision analog-to-digital converter for improved image detail
• Stable exposure control and fast image acquisition (≈2.5 s)
• Battery endurance up to 14 hours (standby ~8 h)
• High conversion efficiency and wide dynamic range
• Lightweight portable design (3.0 kg) with IP54 protection
• Wireless data interface: 802.11n / 802.11ac

Technical specifications

• Product name: flat panel detector
• Brand: Newheek
• Model: NK3543W (wireless)
• Detector technology: a-Si
• Scintillator: CsI
• Image size: 35×43 cm
• Pixel matrix: 2560×3072
• Pixel pitch: 139 µm
• A/D conversion: 16 bit
• Spatial resolution: 3.6 LP/mm
• Image acquisition time: 2.5 s
• X-ray voltage range: 40–150 kV
• Battery standby time: 8 h
• Endurance time: up to 14 h
• Data interface: 802.11n, 802.11ac
• Dimensions: 38.3 × 46 × 1.5 cm
• Detector weight: 3.0 kg
• Detector face load: 300 kg
• Water tightness: IP54
• Power dissipation: 20 W
• Adapter input: AC 100–240 V, 50–60 Hz
• Adapter output: DC 24 V
• Detector protection material: Carbon, PC+ABS
• Detector housing material: Aluminum alloy
• Operating environment: 5–35 °C, 10–75% RH (non-condensing)

Applications and ordering

• Suitable for general radiography, mobile and emergency X‑ray, orthopedics and other radiographic workflows
• FOB price: US $0.5 - 9,999 / Piece; Min. order: 100 pieces; Supply ability: 10000 pieces/month; Country of origin: China
