Diamond type outlet Sil-Ohio

medical gas

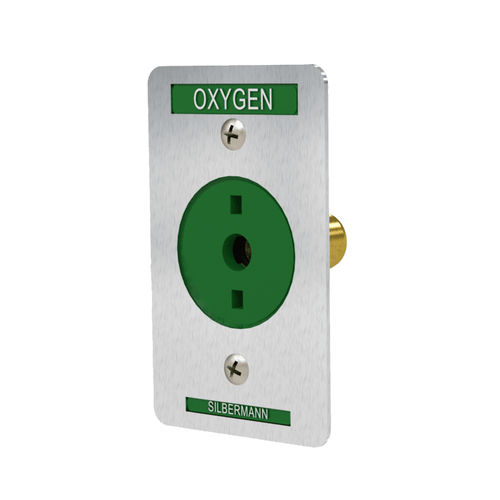

Engineered for long-lasting, reliable performance, our Sil-Ohio Diamond-type medical gas outlets (Terminal Units) deliver consistent, dependable medical gas flow to patients and medical equipment across hospitals, clinics, ambulances, and other healthcare settings.

Each outlet undergoes rigorous flow and leak testing and is cleaned before leaving our facility.

Designed by industrial designers, our Sil-Ohio Diamond-type medical gas outlets have a clean, attractive look that helps create a pleasant environment for patients and medical staff.

Available in a variety of gas types with color-coded identification for easy recognition.
The gas types are:

• oxygen(O2)
• vacuum
• Medical Air
• Nitrous Oxide(N2O)

Offered in the following configurations upon request:

• Wall-mounted
• Panel-mounted
• Pendant-mounted

Features and benefits

• Accepts Sil-Ohio diamond-type gas-specific adapters.
• All outlets are 100% hydrostatic tested for leaks. The outlets are factory- assembled, degreased, and cleaned for medical gas service.
• Indexed to eliminate interchangeability of gas services.
• 360 deg swivel inlet pipe for ease of installation.
• Low maintenance due to use of VITON seals in front assembly (latch valve).

Medical Gas System Standards:
NFPA 99, EN ISO 7396-1 requirements.

Applicable Standards:
NFPA 99, ISO 9170-1.

Silbermann’s Quality Management System:
CE marked

Technical Data

• The medical gas outlet shall be SILBERMANN Diamond type manufactured according to ISO 9170-1.
• The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin-indexed rough-in module.
• The outlet of positive and negative pressure shall consist of primary and secondary check valves to allow testing.
• The front latch valve assembly shall incorporate an anodized aluminum front panel.
• The outlet shall be manufactured with 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. Rough-in pipe shall be silver brazed to the outlet body.
• With the rough-in mounted, the outlet shall be depth-adjustable to compensate for various wall thicknesses.
• The quick-connect outlet shall comply with the ISO 9170-1 standard type and accept only the corresponding Silbermann Diamond Gas Specific Adapter.
• Pressure drop of less than 20 kPa through the outlet at 120 LPM and 350 kPa (3.5 Bar) inlet pressure.
• When fully open, the outlet allows a flow of up to 600LPM and a pressure of 400 kPa (4 Bars).
