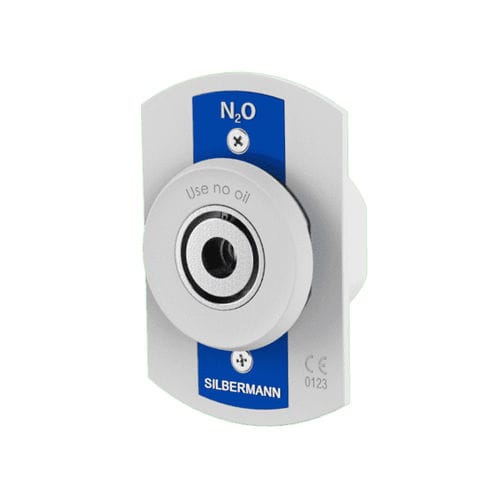

BS type outlet 377623 series

medical gas

We design and manufacture our BS Type Medical Gas Outlet (Terminal Unit) to last and to ensure a constant and reliable medical gas flow for the patient and the medical equipment. All outlets are 100% tested for flow and leakage and are cleaned for oxygen services before shipping. Industrial designers design our British standard outlets to ensure an appealing and pleasant environment for the patient and the medical staff. FEATURES Accepts BS 5682 gas-specific adapters. All medical gas outlets are 100% hydrostatically tested for leaks. The outlets are factory-assembled, degreased, and cleaned for medical gas service. Indexed to eliminate interchangeability of gas services. 360-degree swivel inlet pipe for ease of installation. TECHNICAL DATA The medical gas outlet shall be SILBERMANN BS type BS 5682 The outlet shall be gas-specific by indexing each front service panel to a gas-specific pin-indexed, rough-in module. The outlet of positive and negative pressure shall consist of primary and secondary check valves to allow testing and online maintenance. The outlet shall be manufactured with a 175 mm long, type K, 12.7 mm (1/2”) OD copper pipe. Rough-in pipe shall be silver brazed to the outlet body A newly designed facia frame shall cover the outlet With the rough-in mounted, the outlet shall be depth-adjustable to compensate for various wall thicknesses. MEDICAL GAS SYSTEM STANDARDS: NFPA99, EN ISO 7396-1 & HTM 02-01 requirements. APPLICABLE STANDARDS: ISO 9170-1, BS 5682. SILBERMANN'S QUALITY MANAGEMENT SYSTEM: CE marked by the notified body TÜV-SÜD.
