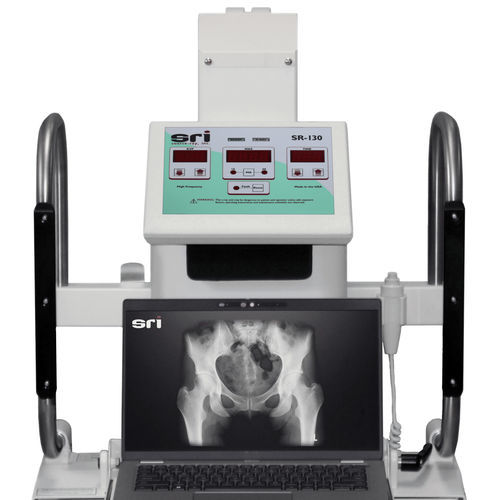

DR mobile radiography unit SR-130

Overview The SR-130 delivers hospital-quality radiographic imaging in a compact, transportable unit for point-of-care use. Lightweight design (100 lb / 45.4 kg) and large inflatable wheels facilitate maneuvering in wards, clinics and constrained environments. The unit features a high power-to-weight ratio and a microprocessor-controlled high-frequency generator for reliable performance.

• Key AdvantagesCompact, general-purpose portable X-ray system for bedside and mobile imaging
• High-frequency, microprocessor-controlled generator with selectable mA (15 / 30)
• Small focal spot (1.0 mm) for improved detail at this power range
• Wide kVp range (40–100) with 1 kVp steps for extremity protocols
• mAs range 0.15–100 and 96 exposure time steps for accurate technique selection
• Ergonomic features: large inflatable wheels, 300° rotating collimator, 15 ft exposure cable

• Clinical Applications

Medical X-ray Systems Applications Include:

• Portable Diagnostic Providers
• Military Field Hospitals & Forward Medical Operations
• Forensic Laboratories
• Urgent Care Facilities
• Hospitals
• Cruise Ships & Maritime Medical Facilities
• First Responders & Emergency Vehicles
• Humanitarian & Outreach Clinics
• Sports Medicine
• Podiatry Clinics
• Radiology Practices
• Orthopedic Clinics & Surgery Centers
• Correctional Healthcare Facilities
• Occupational Health Clinics
• Chiropractic Clinics
• Physical Therapy Clinics
• Nursing Homes & Long-Term Care Facilities
• Homecare
• Pediatric care

Veterinary X-ray Systems Applications Include:

• Veterinary Clinics
• Mobile Veterinary Services
• Wildlife Rescue & Rehabilitation
• Zoos and Aquariums
• Working Dog Healthcare
• Equine Veterinary Care

• Technical SpecificationsModel: SR-130
• Weight: 100 lb (45.4 kg)
• Generator Type: High-frequency resonant inverter, microprocessor-controlled
• kVp Range: 40–100 (extremity range adjustable in 1 kVp steps)
• mA Range: 15 & 30 selectable (constant mA)
• mAs Range: 0.15–100
• Exposure Time: 96 steps
• X-ray Tube: Stationary anode; 15° target; 1.0 focal spot; 30,000 Heat Unit storage
• Collimator: 300° rotation; high-output LED lamp; laser indicators
• Exposure Switch: 2-position (Prep / X-ray); 15 ft cable
• Mechanical Stand: Welded aluminum construction; durable powder coat finish
• Typical Applications: hospitals, clinics, sports complexes, nursing homes, home health care, correctional and military applications
