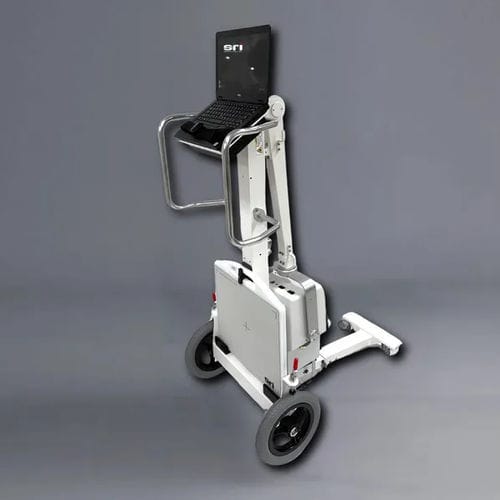

Digital mobile radiography unit SR-115

portable

Overview
Compact, lightweight and maneuverable portable X-ray system engineered for imaging in confined spaces. Delivers high power relative to its size with reliable operation and low maintenance, making it suitable for small examination rooms and limited-access areas.

Key Features

• Single-package design for simplified deployment
• High power-to-weight ratio for its class
• Agile portability for field, clinic or bedside use

Designed with agility

• Weight: 80 lbs / 36 kg
• kVp Range: 40–100 kVp (adjustable in 1 kVp steps)
• mAs Range: 0.15–60
• Controls: Integrated control panel

Key Advantages

• Small footprint suited to constrained environments
• Intuitive integrated controls for fast setup and operation
• Durable welded-aluminum stand and compact housing

Specifications
Radiographic applications:

• Portable radiography for extremities and general imaging where access or space is limited

Generator type

• High-frequency resonant inverter, microprocessor-controlled

kVp range

• Extremity range — adjustable in 1 kVp steps

mA range

• 15 Fixed: constant mA, independent of kV or time

mAs range

• Optimum range for soft tissue and bone resolution

Product compliance

• Certified to FDA 21 CFR Subchapter J

X-ray tube

• Stationary anode, 15° target, 1.0 fs, 25,000 Heat Unit storage for improved image quality and heat capacity

Collimator

• 300° rotation with high-output LED lamp and laser indicators

Exposure switch

• 2-position (Prep / X-ray) with 15' cable

Mechanical stand

• Welded aluminum construction for stability and reduced weight

Technical specifications

• Weight: 80 lbs / 36 kg
• kVp Range: 40–100 kVp (adjustable in 1 kVp steps)
• mA: 15 Fixed, constant independent of kV/time
• mAs Range: 0.15–60
• Generator: High-frequency resonant inverter, microprocessor-controlled
• X-ray Tube: Stationary anode, 15° target, 1.0 fs, 25,000 Heat Unit storage
• Collimator: 300° rotation, LED lamp, laser indicators
• Exposure Switch: 2-position, Prep/X-ray with 15' cable
• Stand: Welded aluminum construction
• Compliance: Certified to FDA 21 CFR Subchapter J
