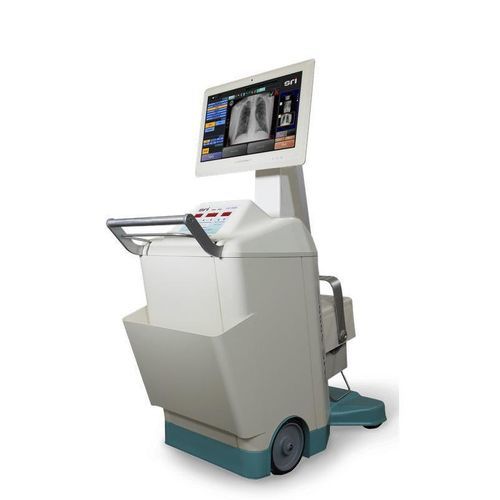

Direct digital mobile radiography unit UC-5000

Overview
The UC-5000 Portable X-ray System is a mobile direct-digital imaging solution designed for urgent care clinics and point-of-care environments. It operates from a standard 115V or 220V outlet and requires minimal site preparation, enabling X-ray capability in existing exam rooms without dedicated lead lining.

Key Features

• Compact mobile form factor for use in standard exam rooms
• Direct-digital detector with fully touchscreen 22" display
• High-frequency resonant inverter generator, microprocessor controlled
• Wireless image transfer and fully touchscreen workflow
• Plug-and-play configuration for rapid deployment in urgent care

Key Advantages

• Minimal space requirement (as small as 8' x 10')
• No special power infrastructure needed (standard 115V; compatible with 220V)
• Lower initial site preparation and installation costs
• Reduced ongoing service and facility upgrade expenses
• Enables integration of X-ray into existing clinical workflows

Clinical Note (Independent Review)
Independent reviewers with teleradiology experience assessed images produced by the UC-5000 for common urgent-care exams (chest PA/lateral, lumbar spine, shoulder, extremities). Reviewers reported consistently diagnostic image quality, including on larger patients (>270 lbs.), for a unit in this power class. The limited requirement for additional shielding was highlighted, allowing use within standard exam rooms and simplified expansion of imaging services.

Specifications
Radiographic applications: Portable urgent-care imaging (chest, spine, shoulders, extremities)
Generator type: High-frequency resonant inverter, microprocessor controlled
KVP range: 40–110 kVp
MA range: 10–50 mA (selectable)
mAs range: 0.10–200 mAs
Exposure time: 0.01–5.0 s
X-ray tube: Stationary anode; 15° target; 1.2 fs; 30,000 heat unit storage capacity
Collimator: 200° rotation with high-output LED lamp and laser indicators
Exposure switch: 2-position (Prep / X-ray)
Mechanical stand: Welded aluminum construction
Power: Standard 115V (compatible with 220V)

Technical specifications

• Radiographic applications: Portable, urgent-care focused imaging (chest, spine, shoulders, extremities)
• Generator: High-frequency resonant inverter, microprocessor controlled
• KVP: 40–110 kVp
• MA: 10–50 mA (selectable)
• mAs: 0.10–200 mAs
• Exposure time: 0.01–5.0 seconds
• Display: 22" full touchscreen
• Exposure switch: 2-position (Prep/X-ray)
• Collimator: 200° rotation, high-output LED and laser indicators
• X-ray tube: Stationary anode, 15° target, 1.2 fs, 30,000 HU storage
• Stand: Welded aluminum construction
• Power: Standard 115V (also compatible with 220V)
