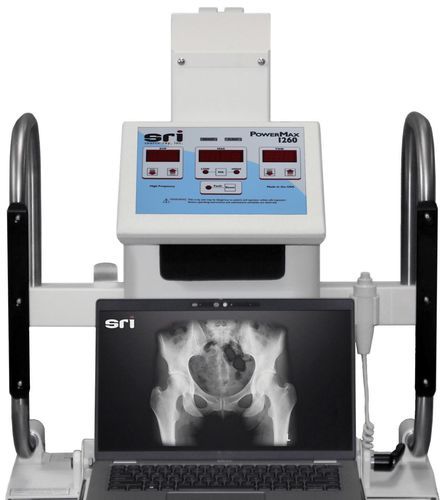

DR mobile radiography unit PowerMax 1260

Overview
The PowerMax-1260 portable X-ray system delivers high-output radiography in a compact, transportable unit optimized for clinical and field use. Lightweight construction, universal input and a microprocessor-controlled high-frequency generator support integration into digital imaging workflows and operation in varied environments.

Highlights

• Power factor correction with universal 100–240 V input
• High-output portable generator, kVp range 40–120
• Compact footprint and low weight for easy manoeuvring
• Originally developed for military field applications
• Stationary-anode X-ray tube with 15° target
• Designed for general-purpose radiography and digital upgrade paths

Designed for clinical mobility

• Weight: 100 lbs (≈45 kg)
• kVp range: 40–120 kVp, adjustable in 1 kVp steps
• mAs range: 0.125–200 (optimum for soft tissue and bone)
• mA range: 12.5–60 selectable; dynamic mA dependent on kV/time
• Exposure switch: 2-position (Prep / X-ray) with 15' cable

Applications & generator
Intended for hospitals, medical centres, clinics, sports medicine facilities, nursing homes, home healthcare, correctional institutions and military use. Generator type: high-frequency resonant inverter, microprocessor-controlled, suitable for digital radiography systems.

Technical specifications

• Weight: 100 lbs (≈45 kg)
• kVp Range: 40–120 kVp (1 kVp steps)
• mA Range: 12.5–60 selectable (dynamic mA)
• mAs Range: 0.125–200
• Generator Type: High-frequency resonant inverter, microprocessor controlled
• X-ray Tube: Stationary anode, 15° target, 1.2 fs, 30,000 Heat Unit storage
• Exposure Time: 96 steps for accurate technique settings
• Collimator: 300° rotation with high-output LED lamp and laser indicators
• Exposure Switch: 2-position (Prep / X-ray) with 15' cable
• Input Power: Universal 100–240 V with power factor correction
• Intended Applications: Hospitals, medical centres, clinics, sports complexes, nursing homes, home healthcare, correctional facilities, military applications
