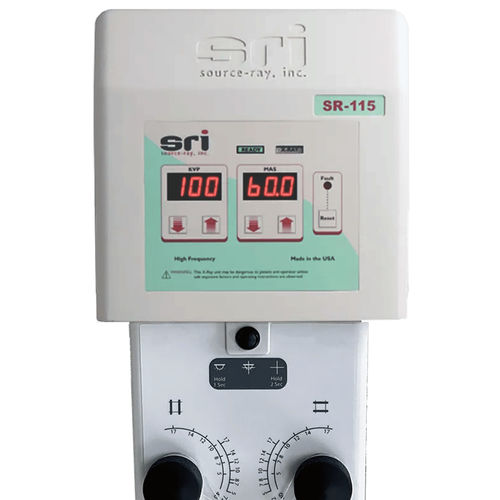

Digital mobile radiography unit SR-115

Overview
The SR-115 portable X-ray system offers a compact, lightweight and highly maneuverable solution for radiographic imaging in confined or limited-access environments. It delivers the maximum power available from a line-powered portable of its size while maintaining reliability and low maintenance requirements.

Key Features

• Single-package, compact design for transport and deployment
• High output relative to unit size
• Agile form factor optimized for portability

Designed for Portable X-ray Applications

• Weight: 80 lbs / 36 kg
• kVp range: 40–100 kVp (extremity range, adjustable in 1 kVp steps)
• mA: 15 fixed — constant mA, independent of kV or exposure time
• mAs range: 0.15–60 (optimal range for soft tissue and bone resolution)
• Controls: Integrated, user-oriented control panel

Key Advantages

• Lightweight design for easier transport and positioning
• Integrated controls for straightforward operation
• Compact footprint suitable for small rooms and constrained sites

Specifications
Radiographic Applications:

• Engineered for portable radiography in confined or limited-access settings

Generator Type:

• High-frequency resonant inverter, microprocessor controlled

kVp Range:

• Extremity range — adjustable in 1 kVp steps

mA Range:

• 15 fixed — constant regardless of kV or time

mAs Range:

• Optimum range for quality soft tissue and bone resolution

Product Compliance:

• Certified to FDA 21 CFR Subchapter J

X-ray Tube:

• Stationary anode, 15° target, 1.0 fs, 25,000 Heat Unit Storage — designed for image quality and heat capacity

Collimator:

• 300° rotation with high-output LED lamp and laser indicators

Exposure Switch:

• 2-position (Prep / X-ray), 15' cable

Mechanical Stand:

• Welded aluminum construction
