Digital mobile radiography unit PowerMax 1260

transportableportablecompact

Overview

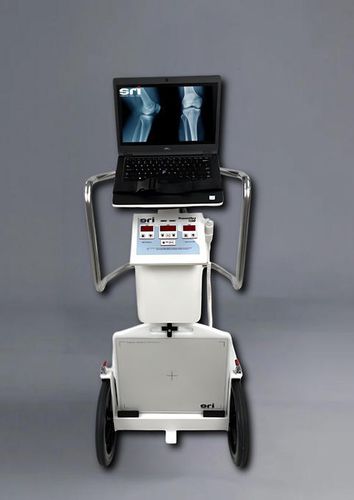

The PowerMax 1260 portable X-ray system delivers a compact, high-output solution for clinical and field radiography. Engineered for reliable operation with low maintenance, it supports facilities transitioning to digital imaging and demanding environments such as military or mobile care units.

Key Features

• Power factor correction with universal input
• High-power portable generator with resonant inverter control
• Compact footprint and lightweight transportable design

Designed with Agility

• Weight: 100 lb
• kVp range: 40–120 kVp (1 kVp step adjustment)
• mAs range: 0.125–200 mAs
• Universal input power: 100–240 V

Key Advantages

• High-output portable system suitable for clinical and field use
• Originally developed for military applications to meet rugged deployment needs
• Balanced design for general radiographic use with efficient heat storage
• Universal input combined with power factor correction for stable performance

Radiographic Applications

• Hospitals, medical centers, outpatient clinics, sports facilities, nursing homes, home health care, correctional facilities and military deployments

Specifications
Generator type: High-frequency resonant inverter, microprocessor-controlled.
kVp range: Extremity-capable 40–120 kVp, adjustable in 1 kVp steps.
mA range: 12.5–60 selectable; dynamic mA dependent on kV or time.
mAs range: 0.125–200 mAs for soft tissue and bone resolution.
Exposure time: 96 steps for accurate technique settings.
X-ray tube: Stationary anode, 15° target, 1.2 fs, 30,000 Heat Unit storage for superior image quality and heat capacity.
Collimator: 300° rotation with high-output LED lamp and laser indicators.
Exposure switch: 2-position (Prep / X-ray) with 15' cable.
Mechanical stand: Welded aluminum construction.
Weight: ~100 lb.
Input power: Universal 100–240 V with power factor correction.
