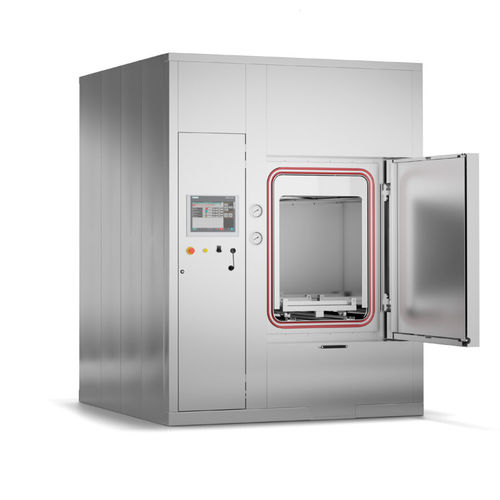

Medical sterilizer AV

for the pharmaceutical industrysaturated steampass-through

The AV Series is a flexible GMP steam sterilizer for applications ranging from formulation and fill-finish to biotech, vaccines, labs and terminal sterilization. Choose from 25 standard chamber sizes and over 400 validated options to match your process, layout and automation standards. Cycles are engineered for reliable sterility assurance with optimized time, water and energy consumption. Typical loads Suitable for sterilization of a wide range of items, including: Machine parts Filter housings Closure components (stoppers, plungers, caps) Liquids in open or vented containers Liquids in closed containers (SVP in vials, ampoules) Glassware Vessels with vent filter Textiles Contaminated materials Layout that fits your facility Choose sliding or hinged doors, technical-area placement and optional remote installation of the electrical cabinet. The sterilizer adapts to building constraints while keeping operation and maintenance access straightforward. Sanitary GMP construction Built for sanitary application in regulated environments: fully drainable designs, non-retentive surfaces and 316L stainless steel with a smooth finish. Welds are ground flush and fabrication can be documented in a complete logbook. Process-contact materials with EN 10204 traceability and USP Class VI compliant elastomers. Barrier containment solutions Choose the right barrier for your facility: Air Differential Seal for aseptic areas, using controlled room pressure differential, or fully hermetic Bioseal for high-containment applications up to BSL-4. These seals can be fitted on one or both sides of the sterilizer for complete separation of process and technical areas.
