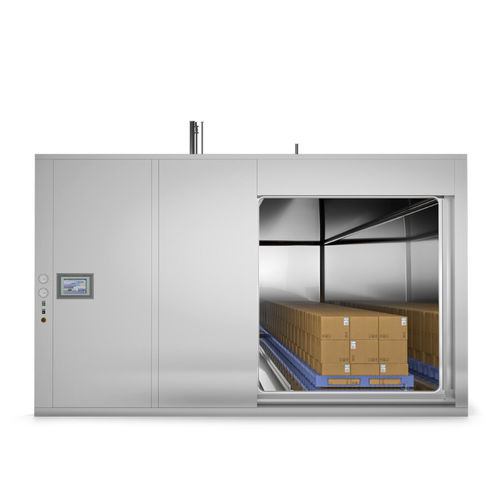

Medical sterilizer AGS

surgicalfor the pharmaceutical industryethylene oxide

Low-temperature ethylene oxide (EtO) sterilizers for heat-sensitive products, designed for compliance with EN 1422. Configurations can include pre-conditioning, sterilization, and degassing chambers, with automated loading/unloading to reduce operator exposure and support efficient production flow. Typical loads Suitable for low-temperature sterilization of a wide range of medical devices, including: Medical devices (surgical procedure sets, infusion sets, sutures, implants) Single use plastic syringes empty Dialysis cartridges Nested empty syringes, cartridges, vials Drug delivery devices Medical device or SVP in blister packaging Heat sensitive components Surgical instruments Fully integrated solution SteelcoBelimed can deliver a complete system scope, including pre-conditioning and degassing cells, the sterilization chamber, load handling automation, utilities (water/steam), and an EtO abatement system. Safe hermetic door closure Pneumatic clamps press the door against the chamber flange to compress the seal. Two peripheral gaskets provide redundancy if one loses integrity. The gaskets are pneumatically actuated within their grooves, and an air reservoir maintains sealing pressure in the event of a temporary loss of compressed air or power. High productivity, low consumption Advanced heat recovery and a closed-loop vacuum system help reduce utilities and running costs. The water-ring pump is supplied from the separator to limit water use, supporting stable cycles and high throughput.
