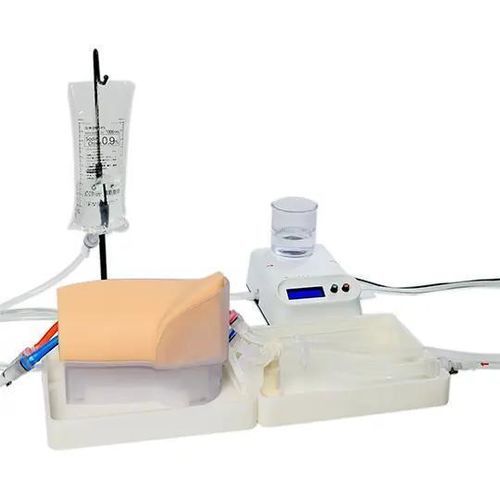

Femoral artery vascular model FVA-B01

femoral veinlegPCI

Overview
This portable, easy-to-assemble femoral vascular access trainer is intended for practicing femoral puncture, guide-wire insertion, catheterization and cannulation for procedures such as PCI, TAVR, mechanical circulatory support and structural heart interventions. When used with an Electro-hydraulic Pulse Generator (PG-B01, sold separately), the arterial line can simulate pulsation with adjustable heart rate and aortic pressure, while venous pressure can be simulated via IV drip for realistic haemodynamic conditions.

Procedures

• Femoral vascular puncture
• Guide-wire insertion in the femoral vessels
• Catheterization of femoral vessels
• Femoral cannulation for support devices

Features

• 1:1 scale to the right thigh of a human body for realistic spatial orientation
• Two versions available: Basic (FVA-B01) and Advanced (FVA-B02) with anatomical vessel variation
• Artery compatible with Electro-hydraulic Pulse Generator (PG-B01) to generate adjustable pulsations
• Venous pressure simulation possible via IV drip connection
• Supports multiple ultrasound-guided vascular training scenarios
• Muscle pad endurance: up to 30 cannulations or 200 catheterizations depending on training use
• Modular design for quick assembly, portability and cost-effective repeated training
• Realistic visual and tactile appearance to enhance trainee immersion

Models

• FVA-B01 — Basic Version: for femoral puncture, guide-wire insertion, catheterization and cannulation. Includes portable case, basic muscle pad (ECMO-S08) and muscle base (ECMO-S11) plus standard components (PG-B01 not included).
• FVA-B02 — Advanced Version: for femoral puncture, guide-wire insertion, catheterization and cannulation. Includes portable case, advanced muscle pad (FVA-S01) and muscle base (FVA-S02) plus standard components (PG-B01 not included).

Spare Parts / Included Components (examples)

• Femoral vein (33.5 cm, blue) (ECMO-S01)
• Femoral artery (33.5 cm, red) (ECMO-S02)
• Right inguinal muscle pad (ECMO-S08)
• Right inguinal muscle base (ECMO-S11)
• Advanced right inguinal muscle pad for FVA-B02 (FVA-S01)
• Advanced right inguinal muscle base for FVA-B02 (FVA-S02)
• Drip stand (FVA-S03)
• Electro-hydraulic Pulse Generator (PG-B01) — sold separately

Documentation
Catalog and product datasheet available in PDF format.

Technical specifications

• Scale: 1:1 ratio to the right thigh of a human body
• Net Dimensions (L×W×H): 27 cm × 14 cm × 22 cm
• Net Weight: 5.5 kg
• Gross Dimensions (L×W×H): 39 cm × 37 cm × 40 cm
• Gross Weight: 10.5 kg
• Muscle pad durability: supports up to 30 cannulations or 200 catheterizations depending on training purpose
• Artery compatible with Electro-hydraulic Pulse Generator (PG-B01) for adjustable pulsations
• Venous pressure can be simulated via IV drip
• Modular portable case included with standard components (PG-B01 not included)
