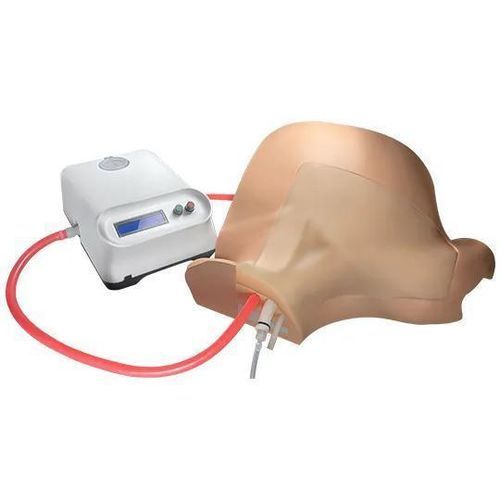

General care simulator CVC-B02

palpationheart ratecentral venous catheterization

Overview
This modular training platform simulates central venous catheterization and implantable port access for clinical skill acquisition. The system supports dual pulsatility generation via a manual hand pump or the included Electro-hydraulic Pulse Generator (PG-B01) and is designed for repeated use with a self-healing ultrasound-compatible neck muscle pad.

Procedures

• Ultrasound-guided central venous catheter (CVC) insertion
• External landmark-based catheterization for CVC placement
• Insertion techniques for PermCath, Hickman and CVP-Cath devices
• Implantable port (Port-A) access and care

Features

• Clavicle-skeleton design in the neck muscle pad enables palpation of anatomical landmarks and realistic needle trajectory
• Ultrasound-compatible materials improve vessel visibility and image fidelity during US-guided training
• Self-healing neck pad rated for up to 50 punctures before replacement
• Adjustable aortic pressure and heart rate via hand pump or Electro-hydraulic Pulse Generator (PG-B01)
• Water tank and neck vessel set (SVC) accept simulated blood for enhanced realism
• Supports subcutaneous tunneling and pre-tunneled pad option for tunneled-catheter practice
• Pre-set grooves accommodate module extensions for PICC procedure training
• Modular architecture reduces consumable costs by allowing targeted part replacement
• Portable case included for transport and on-site training

Models

• CVC-B02 — Electro-hydraulic Driver Version; supplied for ultrasound-guided CVC insertion and Port-A practice; includes portable case, upper body base, full CVC spare parts kit (CVC-S01 to CVC-S08) and Electro-hydraulic Pulse Generator (PG-B01)

Spare Parts

• Neck vessel set (SVC) (CVC-S01)
• Neck muscle pad (CVC-S02)
• Pre-tunneled neck muscle pad (CVC-S02A)
• Neck muscle base (CVC-S03)
• Water tank (CVC-S04)
• Hand pump (manual pulsation backup) (CVC-S05)
• 75 cm carotid artery for hand pump (CVC-S06)
• Extension tubing (CVC-S07)
• Connection tubing (CVC-S08)
• Electro-hydraulic Pulse Generator (PG-B01)

Specifications
Net Dimensions (L×W×H): 37.5 cm × 29 cm × 18 cm
Net Weight: 3.5 kg
Gross Dimensions (L×W×H): 54 cm × 37.5 cm × 27 cm
Gross Weight: 9.5 kg

Technical specifications

• Model: CVC-B02 (Electro-hydraulic Driver Version)
• Applicable procedures: ultrasound-guided CVC insertion, implantable port access and care, external landmark catheterization, PermCath/Hickman/CVP-Cath insertion
• Modularity: expansion grooves for additional modules (PICC practice)
• Neck pad: clavicle skeleton design; ultrasound-compatible; self-healing up to 50 punctures
• Pulsatility: manual hand pump or PG-B01 Electro-hydraulic Pulse Generator — adjustable pressure and rate
• Realism: supports simulated blood in water tank and SVC set; under-skin tunneling capability
• Packaging: portable case included; gross dimensions 54 × 37.5 × 27 cm; gross weight 9.5 kg
