Vascular surgery simulator ECMO-B01A

for critical carefor cardiopulmonary carefor intensive care

Overview

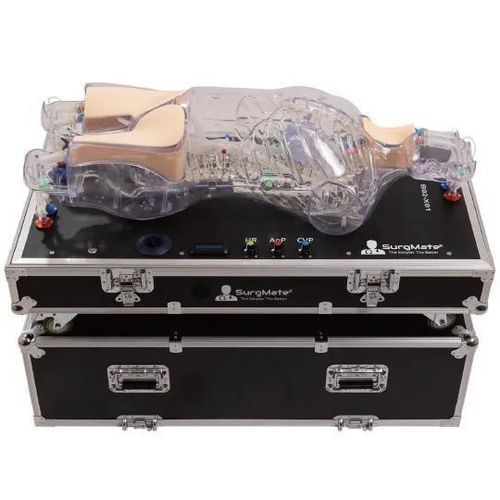

Designed with a translucent structure, this training platform enables real-time visual monitoring of procedures for clear assessment and immediate debriefing. The system integrates systemic and pulmonary circulations and is compatible with standard ECMO consoles to simulate initiation and management of extracorporeal support.

Procedures

• A. Establishment of ECMO support
  • 1. Cannulation for drainage (access) and return (re-infusion) cannulas.
  • 2. Initiation of ECMO with cannulas and circuit.
  • 3. Hybrid ECMO configurations (VV-A, V-AV, VV-V, etc.).
  • 4. ECMO troubleshooting: hypovolemia, oxygenator failure, pump head/drive failure, cannula malposition, air entrainment, etc.
• B. Intra-aortic balloon pump (IABP) assist
  • 1. IABP catheter insertion.
  • 2. Connection to the IABP console.
• C. Hemodialysis support
  • 1. Hemodialysis catheter insertion.
  • 2. Connection to a hemodialysis machine.
• D. Impella support
• E. Resuscitative Endovascular Balloon Occlusion of the Aorta (REBOA) deployment
• F. Stent graft placement

Features

• Translucent construction for direct visualisation and simplified troubleshooting.
• Integrated design for straightforward setup and an organized training environment.
• Realistic anatomy with systemic and pulmonary circulation.
• Adjustable physiological parameters: heart rate, arterial pressure (AoP), central venous pressure (CVP).
• High-quality ultrasound imaging compatibility for realistic guidance and assessment.
• Modular components for fast replacement and flexible scenario design.

Models / Included components

• ECMO-B01A
• Includes model base, veins (ECMO-S01A ×2, ECMO-S03A) and arteries (ECMO-S02A ×2, ECMO-S04A).
• Left and right inguinal muscle pads (ECMO-S07A, ECMO-S08A).
• Right neck muscle assembly (ECMO-S16A).
• Left and right inguinal muscle bases (ECMO-S10A, ECMO-S11A).
• AC/DC converter and water filling and drainage accessories.

Spare parts / Consumables

• Femoral vein (22 cm, blue) – ECMO-S01A; replace after ~3 punctures; contains two quick connectors; pre-assembled.
• Femoral artery (22 cm, red) – ECMO-S02A; replace after ~2 punctures due to higher pressure; contains two quick connectors; pre-assembled.
• Internal jugular vein (18 cm, blue) – ECMO-S03A; replace after ~3 punctures; contains two quick connectors; pre-assembled.
• Carotid artery (18 cm, red) – ECMO-S04A; replace after ~2 punctures due to higher pressure; contains two quick connectors; pre-assembled.
• Left inguinal muscle pad – ECMO-S07A; replace after ~50 punctures.
• Right inguinal muscle pad – ECMO-S08A; replace after ~50 punctures.
• Right neck muscle pad assembly – ECMO-S16A; replace after ~50 punctures.
• Left inguinal muscle base – ECMO-S10A; replace when needed (rare damage).
• Right inguinal muscle base – ECMO-S11A; replace when needed (rare damage).
• Vein quick connector – ECMO-S13A.
• Artery quick connector – ECMO-S14A.

Specification
Net Dimensions (L × W × H): 115.5 cm × 58.5 cm × 58 cm
Net Weight: 50 kg
Reservoir Capacity: 9 L

Characteristics / technical specifications

• Model: ECMO-B01A.
• Net dimensions (L × W × H): 115.5 cm × 58.5 cm × 58 cm.
• Net weight: 50 kg.
• Reservoir capacity: 9 L.
• Translucent structure for real-time visual monitoring.
• Integrated systemic and pulmonary circulatory systems.
• ECMO console compatibility and capability to initiate ECMO with cannulas and circuit.
• Supports hybrid ECMO configurations (VV-A, V-AV, VV-V, etc.).
• Adjustable physiological parameters: heart rate, arterial pressure (AoP), central venous pressure (CVP).
• Quality ultrasound imaging capability.
• Modular design for quick part replacement.
• Consumables and parts include recommended replacement cycles (see spare parts list).
