Circulatory system vascular model CBS-B01coronary arteriestrainingwith blood vessels
Add to favorites
Compare this product
Characteristics
- Area of the body
- coronary arteries, circulatory system
- Procedure
- training
- Accessories
- with blood vessels
- Other characteristics
- transparent, flexible, with control unit
- Length
400 mm
(15.7 in)- Width
250 mm
(9.8 in)- Height
100 mm
(3.9 in)- Weight
2.5 kg
(5.51 lb)
Description
Description

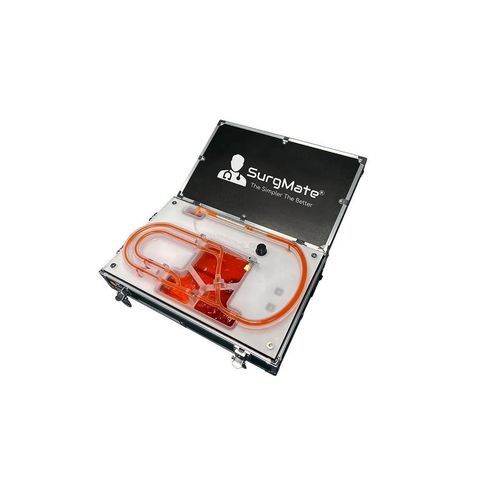

This portable, user-oriented training platform provides hands-on practice for guidewire manipulation, catheter navigation and stent deployment/retraction in coronary and bifurcation anatomies. The built-in circulatory system simulates flow resistance and tactile feedback, while interchangeable transparent vessels allow visual confirmation and repeatable scenarios.
Procedures
Features
Models
Standard Version - CBS-B01 includes the platform and one set of flexible transparent vessels (CBS-S01, CBS-S02 and CBS-S03). Temperature Control Version and rigid vessel options are available upon request.
Spare Parts / Vessels
Specification
Technical specifications
This portable, user-oriented training platform provides hands-on practice for guidewire manipulation, catheter navigation and stent deployment/retraction in coronary and bifurcation anatomies. The built-in circulatory system simulates flow resistance and tactile feedback, while interchangeable transparent vessels allow visual confirmation and repeatable scenarios.
Procedures
- Coronary stent placement
- Coronary bifurcation stenting placement
- Coronary wire insertion
Features
- Three main coronary arteries: Left main coronary artery (LMCA), Left circumflex artery (LCx), Left anterior descending artery (LAD)
- Interchangeable trunks and branches with varied bifurcation angles to simulate different bifurcation stent types
- Electric-powered blood circulation system
- Adjustable blood flow rate
- Transparent vessel design for immediate visual feedback and effective demonstration of guidewire techniques
- Modular configuration to support multiple training setups
- Integrated into a carrying case for rapid deployment and portability
Models
Standard Version - CBS-B01 includes the platform and one set of flexible transparent vessels (CBS-S01, CBS-S02 and CBS-S03). Temperature Control Version and rigid vessel options are available upon request.
Spare Parts / Vessels
- Flexible transparent vessel (ID 4 mm, 3 mm, 3 mm)
- LMCA 75 degrees (CBS-S01)
- LCx (OB1) 30 degrees (CBS-S02)
- LAD (D1) 25 degrees (CBS-S03)
Specification
- Dimensions (L×W×H): 40 cm × 25 cm × 10 cm
- Weight: 2.5 kg
Technical specifications
- Model: CBS-B01
- Intended training: wiring and stenting in coronary bifurcation and branches
- Includes: platform and one set of flexible transparent vessels (CBS-S01, CBS-S02, CBS-S03)
- Vessel IDs: 4 mm, 3 mm, 3 mm
- Bifurcation angles: LMCA 75°; LCx 30°; LAD 25°
- Blood circulation: electric-powered, adjustable flow rate
- Design: transparent vessels for visual feedback; modular components; integrated carrying case for portability
- Additional options: Temperature Control Version and rigid vessel available upon request
- Dimensions: 40 cm × 25 cm × 10 cm
- Weight: 2.5 kg
