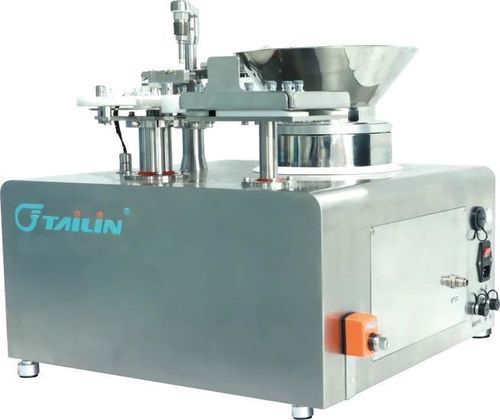

Sealing machine for the pharmaceutical industry DF01

laboratoryautomatic

Introduction
DF01 is a compact desktop vial stoppering device designed for aseptic production environments. It combines manual vial loading with automatic stoppering and a no-vial-no-stoppering safety function. Servo-driven positioning and vacuum pick-up ensure accurate, gentle stopper placement compatible with full and half stoppering modes. The unit can be integrated with peristaltic pump filling systems to enable combined filling and stoppering workflows.
Features

• Servo-driven control for precise and repeatable positioning.
• Vacuum pick-up system for gentle stopper handling.
• No-vial-no-stoppering interlock to prevent contamination and loss.
• Stopper-contact parts made from materials resistant to heat and humidity sterilization.
• Compact footprint suitable for use in biosafety cabinets and cleanrooms.
• Quick-change design for consumable parts to minimize downtime.
• Foot pedal operation and no complex parameter setup required.
• Automatic stopper feeding from tray and automatic discharge to collection tray.
• Supports data exchange with peristaltic filling pumps for synchronized operation.

Specifications

• Power supply: 220V, 50Hz
• Power: 0.6 kW
• Weight: approximately 40 kg
• Throughput: up to 500 vials per hour
• Compressed air: 90.4 MPa (minimum required)
• Dimensions (L x W x H): 475 mm x 456 mm x 481 mm

Applications
Intended for aseptic stoppering of vials in pharmaceutical production, biotechnology, gene therapy manufacturing and laboratory R&D. Suitable for small-batch production, clinical trial preparation and pilot lines where integration with existing filling systems is required.
